LED Power: 9W
LED Power: 9W
Code:AFMA-8302010F-DN
AFTER7 Projector Light
Projector Light round made of die-cast aluminium; external 24VDC ON-OFF Driver; dark-grey powder-coating finish (RAL 7024); LED 9W; measurements Ø68mm x 124mm; height of the luminaire is 109mm; luminaire’s weight is approximately 940g; CCT 3000K with an System Output of 850lm; decent color rendering at an index of CRI80; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 20° beam angle; degree of housing protection according to DIN EN 60529 (IP67); Impact resistance of the luminaire is in the class IK10;
Technical Drawing

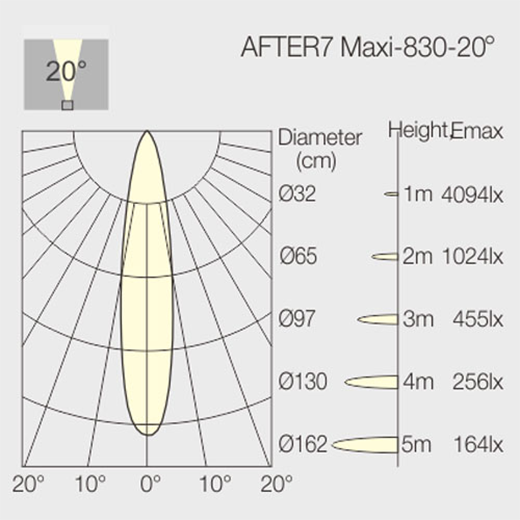

Light Distribution
Application: Outdoor
Product Category: Garden Lamp
Type: Adjustable
Mounting Type: Projector Light
Trim: Round
Housing Color: Dark Grey
RAL-Code: 7024
Material: Die-Cast Aluminium
Finish: Powder-Coated
IP: 67
CCT: 3000K
CRI: 80
System Output: 850lm
Lifetime: 50000h@L80B10
LED Chip: CITIZEN
Beam Angle: 20°
Optional Accessories: Spike
LED Driver: ON-OFF
LED Power: 9W
System Power: 10W
LED Voltage: 24VDC
Measurements: Ø68mm
Height: 109mm
Net Weight: 940g
Gross Weight: 1040g
