LED Power: 5W
LED Power: 5W
Code:BAY-8309006F-DN

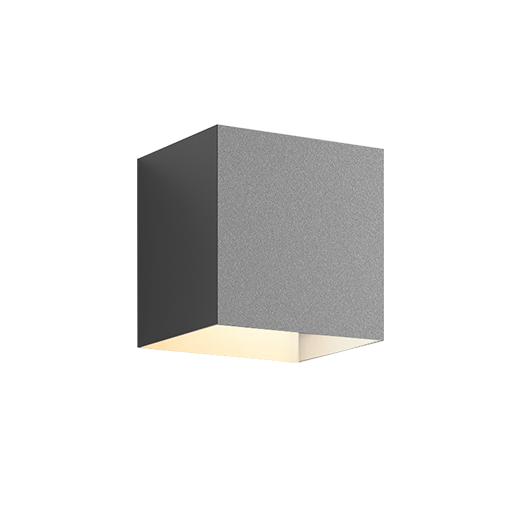

BAY Wall Light
Wall Light square made of die-cast aluminium with integrated ON-OFF Driver; dark-grey powder-coating finish (RAL 7024); LED 5W; measurements 110mm x 95mm; height of the luminaire is 110mm; luminaire’s weight is approximately 500g; CCT 3000K with an System Output of 430lm; decent color rendering at an index of CRI80; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CREE LED Chips; 5 years warranty; beam characteristic with 90° beam angle; degree of housing protection according to DIN EN 60529 (IP65); Impact resistance of the luminaire is in the class IK10;

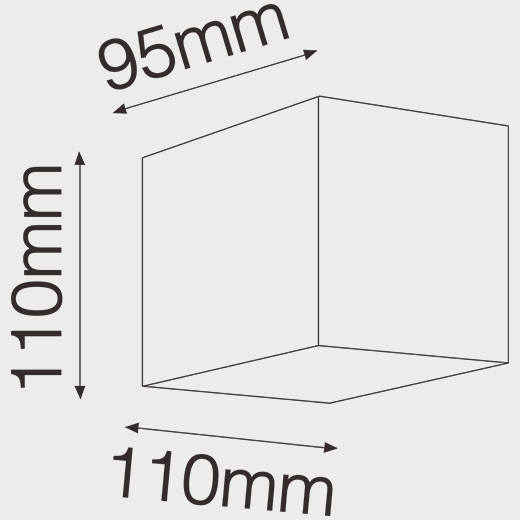

Technical Drawing

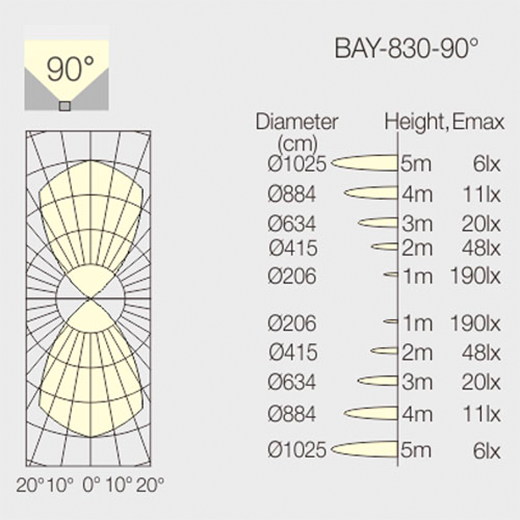

Light Distribution
Application: Outdoor
Product Category: Surface Mounted
Type: Fixed
Mounting Type: Wall Light
Trim: Square
Housing Color: Dark Grey
RAL-Code: 7024
Material: Die-Cast Aluminium
Finish: Powder-Coated
IP: 65
CCT: 3000K
CRI: 80
System Output: 430lm
Lifetime: 50000h@L80B10
LED Chip: CREE
Beam Angle: 90°
LED Driver: ON-OFF
LED Power: 5W
System Power: 6W
Input Voltage: 220–240V ~50/60Hz
LED Voltage: 220-240 VAC
Measurements: 110mm x 95mm
Height: 110mm
Net Weight: 500g
Gross Weight: 560g
