LED Power: 10W
LED Power: 10W
Code:CAMD-8304512F-DN

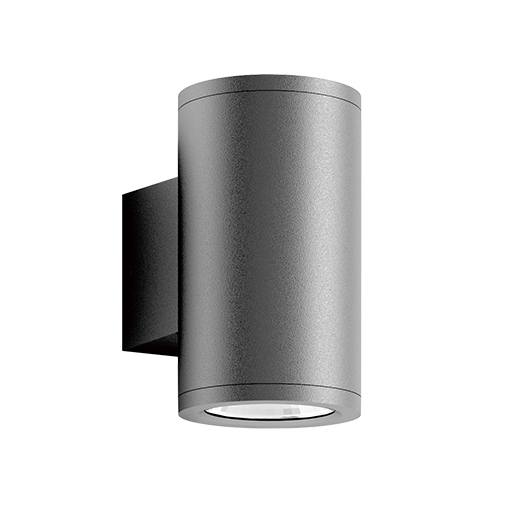

CAMPSBAY Wall Light
Wall Light round made of die-cast aluminium with integrated ON-OFF Driver; dark-grey powder-coating finish (RAL 7024); LED 10W; measurements Ø80mm x 106mm; height of the luminaire is 138mm; luminaire’s weight is approximately 620g; CCT 3000K with a System Output of 1000lm; decent color rendering at an index of CRI80; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CREE LED Chips; 5 years warranty; beam characteristic with 45° beam angle; degree of housing protection according to DIN EN 60529 (IP65); Impact resistance of the luminaire is in the class IK07;

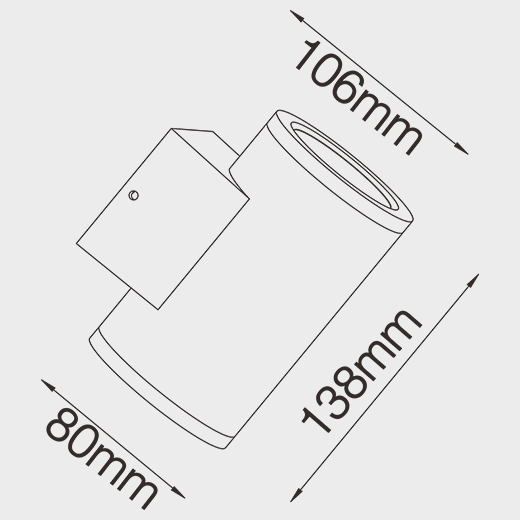

Technical Drawing

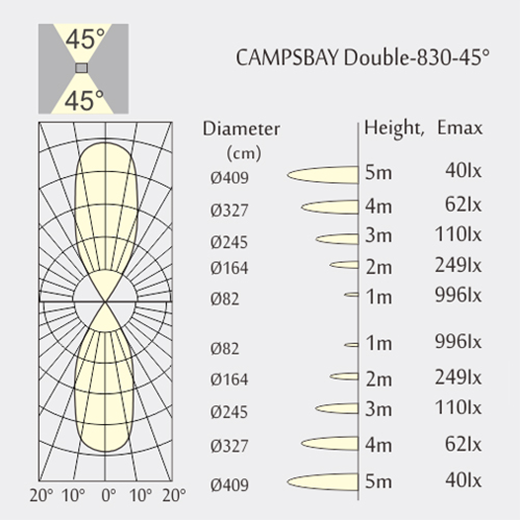

Light Distribution
Application: Outdoor
Product Category: Surface Mounted
Type: Fixed
Mounting Type: Wall Light
Trim: Round
Housing Color: Dark Grey
RAL-Code: 7024
Material: Die-Cast Aluminium
Finish: Powder-Coated
IP: 65
CCT: 3000K
CRI: 80
System Output: 1000lm
Lifetime: 50000h@L80B10
LED Chip: CREE
Beam Angle: 45°
LED Driver: ON-OFF
LED Power: 10W
System Power: 12W
Input Voltage: 220–240V ~50/60Hz
LED Voltage: 220-240 VAC
Measurements: Ø80mm x 106mm
Height: 138mm
Net Weight: 620g
Gross Weight: 700g
