LED Power: 12W
LED Power: 12W
Code:CRUD-830A214F-DN

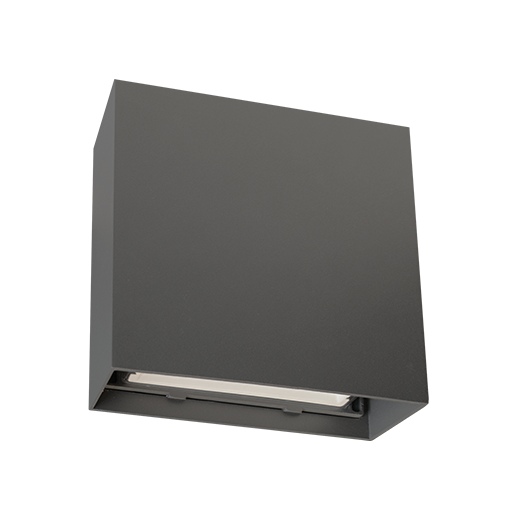

CRUZ D LED Wall Light
Wall Light square with light emission on two sides made of die-cast aluminium with integrated ON-OFF Driver; dark-grey powder-coating finish (RAL 7024); System Power 14W; primary: 220–240V ~50/60Hz; measurements 160mm x 50mm x 160mm; CCT 3000K with an System Luminous flux of 1400lm; decent color rendering at an index of CRI80; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient OSRAM LED Chips; 5 years warranty; beam characteristic with 120° beam angle; UGR<19; degree of housing protection IP65; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician

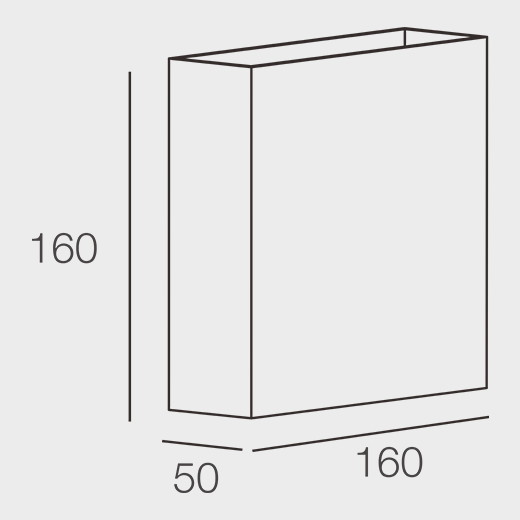

Technical Drawing

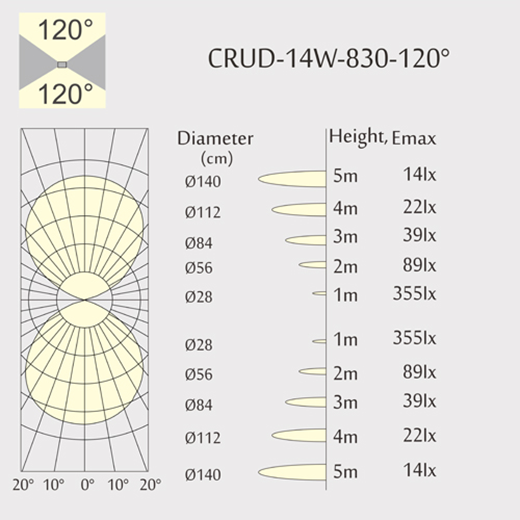

Light Distribution
Application: Outdoor
Product Category: Wall Light
Type: Fixed
Mounting Type: Wall Light
Trim: Square
Housing Color: Dark Grey
RAL-Code: 7024
Material: Die-Cast Aluminium
Finish: Powder-Coated
IP: 65
CCT: 3000K
CRI: 80
LED Output: 1600lm
System Output: 1400lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: OSRAM
Beam Angle: 120°
UGR: <19
LED Driver: ON-OFF
LED Power: 12W
System Power: 14W
Input Voltage: 220–240V ~50/60Hz
LED Voltage: Primary: 220–240V ~50/60Hz
LED Current: Secondary: 36V / 2*160mA
Measurements: 160mm x 50mm
Height: 160mm
Net Weight: 680g
Gross Weight: 760g
