Code:D4R00621-840LPF-VM

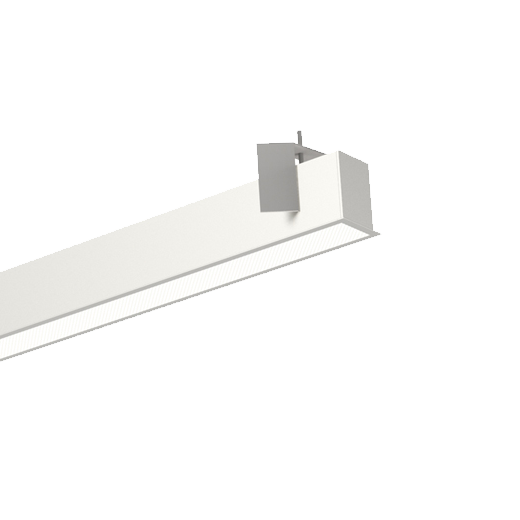

DASH 40 Recessed LED luminaire
Recessed LED luminaire with direct beam made of high-quality extruded aluminium profile; silver powder-coating finish – textured matt (RAL 9006); ON-OFF Driver is integrated into the luminaire housing; System Power (Total power consumption) 9W – Low Power; Dimensions of the profile channel (LxWxH): 621mm x 54mm x 110mm; ceiling cutout of 616mm x 48mm with a narrow mounting trim; luminaire’s weight is approximately 1400g; CCT 4000K with a System Luminous Flux of 876lm; decent color rendering at an index of CRI>80; Binning initial <= MacAdam 3; min. 80% of the luminous flux after 50000h service life L80B10 with energy-efficient LUMINUS LED chips of the latest generation; 5-year manufacturer's guarantee; diffuser in polymethyl methacrylate (PMMA) clear with inserted microprismatic plate for reduced luminance; protection class of the housing IP20; RG<1 (EN62471); protection class I
Technical Drawing
Light Distribution
Application: Indoor
Product Category: Linear Light
Mounting Type: Recessed Mounted
Trim: Square
Housing Color: Silver
RAL-Code: 9006
Diffuser: Microprismatic
Material: Extruded Aluminium Profile
Finish: Powder-Coated
IP: 20
CCT: 4000K
CRI: 80
System Output: 876lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: LUMINUS
Beam Angle: Direct
LED Driver: ON-OFF
LED Power: Low Power
System Power: 9W
Measurements: 621mm x 54mm
Cutout: 616mm x 48mm
Height: 110mm
Net Weight: 1400g
Ceiling Thickness: 10-40mm
