Housing Color: Silver
Housing Color: Silver
Code:D7P01214-830HPF-VO-U
DASH 70 Suspended
Pendant LED luminaire with direct/indirect beam made of high-quality extruded aluminium profile; silver powder-coating finish – textured matt (RAL 9006); luminaire incl. white canopy with transparent feeder cable as well as cable hangers and quick-release clamps for stepless regulation of mounting height; ON-OFF Driver is integrated into the luminaire housing; System Power (Total power consumption) 57W – High Power; Dimensions of the profile channel (LxWxH): 1214mm x 71mm x 100mm; luminaire’s weight is approximately 4200g; CCT 3000K with a System Luminous Flux of 7849lm; decent color rendering at an index of CRI>80; Binning initial <= MacAdam 3; after a lifetime of 75000h L80B10 min. 80% of the luminous flux with energy efficient LUMINUS LED Chips of the latest generation; 5 years warranty; diffusor made of Polymethylmethacrylate (PMMA) opal; degree of housing protection IP20; RG<1 (EN62471); protection class I; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician

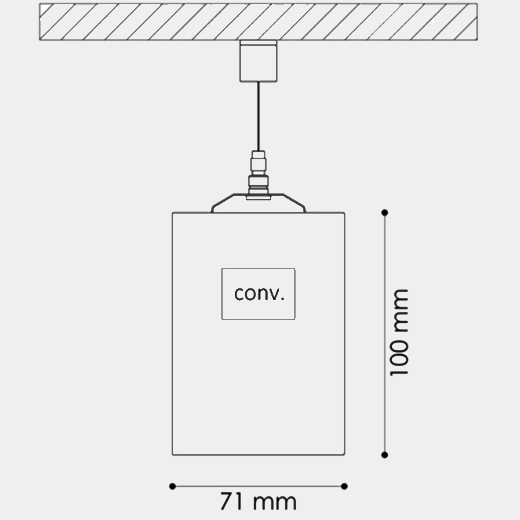

Technical Drawing

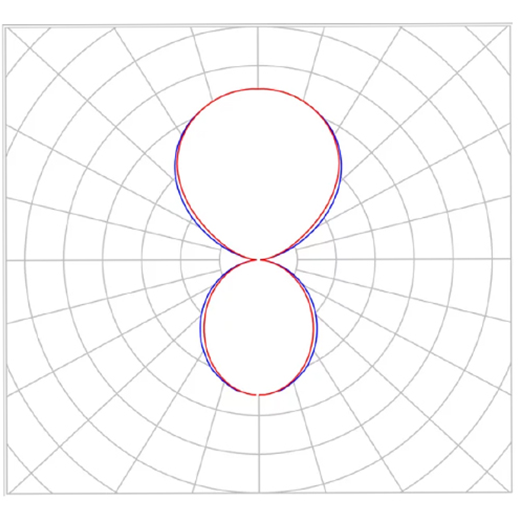

Light Distribution
Application: Indoor
Product Category: Linear Light
Mounting Type: Pendant
Trim: Square
Housing Color: Silver
RAL-Code: 9006
Diffuser: Opal
Material: Extruded Aluminium Profile
Finish: Powder-Coated
IP: 20
CCT: 3000K
CRI: 80
System Output: 7849lm
Lifetime: 75000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: LUMINUS
Beam Angle: Direct/Indirect
LED Driver: ON-OFF
LED Power: High Power
System Power: 57W
Measurements: 1214mm x 71mm
Height: 100mm
Net Weight: 4200g
