Code:D7W00614-830HPF-BM

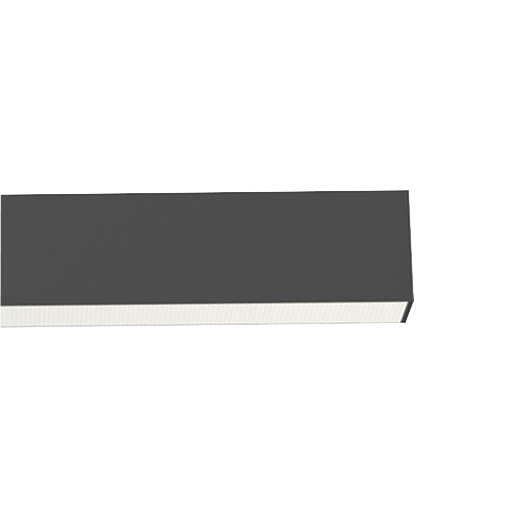

DASH 70 Wall luminaire
Wall-mounted LED luminaire with direct beam made of high-quality extruded aluminium profile; black powder-coating finish – textured matt (RAL 9005); ON-OFF Driver is integrated into the luminaire housing; System Power (Total power consumption) 16W – High Power; Dimensions of the profile channel (LxWxH): 614mm x 71mm x 100mm; luminaire’s weight is approximately 2800g; CCT 3000K with a System Luminous Flux of 1544lm; decent color rendering at an index of CRI>80; Binning initial <= MacAdam 3; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient LUMINUS LED Chips of the latest generation; 5 years warranty; diffusor made of Polymethylmethacrylate (PMMA) clear with microprismatic plate inserted for lower luminance; degree of housing protection IP20; RG<1 (EN62471); protection class I; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician

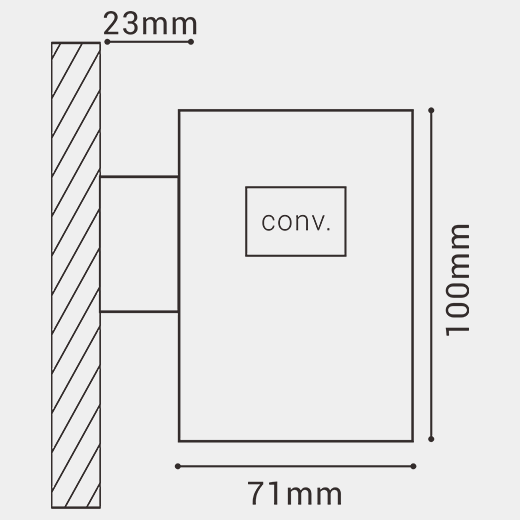

Technical Drawing

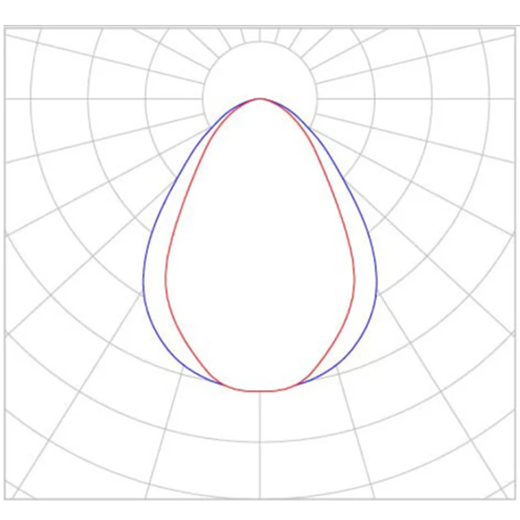

Light Distribution
Application: Indoor
Product Category: Linear Light
Mounting Type: Wall-mounted
Trim: Square
Housing Color: Black
RAL-Code: 9005
Diffuser: Microprismatic
Material: Extruded aluminium profile
Finish: Powder-Coated
IP: 20
CCT: 3000K
CRI: 80
System Output: 1544lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: LUMINUS
Beam Angle: Direct
LED Driver: ON-OFF
LED Power: High Power
System Power: 16W
Measurements: 614mm x 71mm
Height: 100mm
Net Weight: 2800g
