Code:D7W00614-830LPD-WM

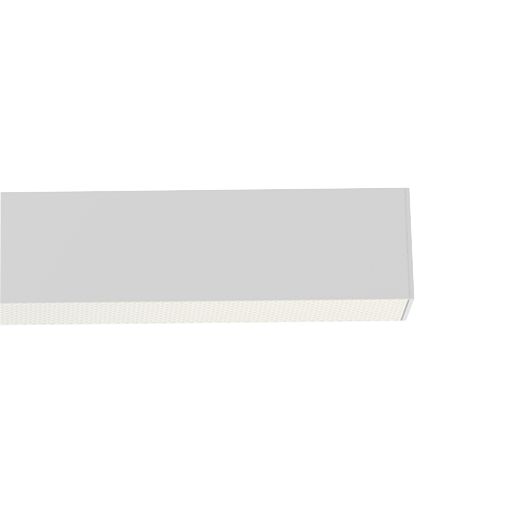

DASH 70 Wall luminaire
Wall-mounted LED luminaire with direct beam made of high-quality extruded aluminium profile; white powder-coating finish – textured matt (RAL 9016); DALI Dim Driver is integrated into the luminaire housing; System Power (Total power consumption) 12W – Low Power; Dimensions of the profile channel (LxWxH): 614mm x 71mm x 100mm; luminaire’s weight is approximately 2800g; CCT 3000K with a System Luminous Flux of 1003lm; decent color rendering at an index of CRI>80; Binning initial <= MacAdam 3; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient LUMINUS LED Chips of the latest generation; 5 years warranty; diffusor made of Polymethylmethacrylate (PMMA) clear with microprismatic plate inserted for lower luminance (UGR<19); degree of housing protection IP20; RG<1 (EN62471); protection class I; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician
Technical Drawing
Light Distribution
Application: Indoor
Product Category: Linear Light
Mounting Type: Wall-mounted
Trim: Square
Housing Color: White
RAL-Code: 9016
Diffuser: Microprismatic
Material: Extruded aluminium profile
Finish: Powder-Coated
IP: 20
CCT: 3000K
CRI: 80
System Output: 1003lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: LUMINUS
Beam Angle: Direct
UGR: <19
LED Driver: DALI Dim
LED Power: Low Power
System Power: 12W
Measurements: 614mm x 71mm
Height: 100mm
Net Weight: 2800g
