Code:DS-W-GR6D-50W-350-1050-D

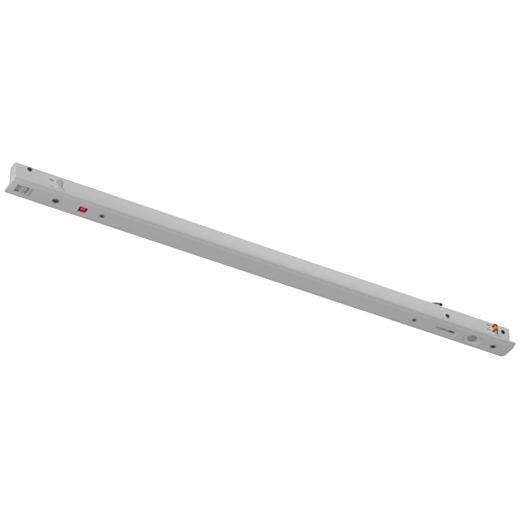

DASH Smart InTrack Driver
GR6D-15 DALI-2 (DT6) In Track driver 50W 350-1050mA for 3-phase power rails as per EN 60570 for linear lamps DSD26-L120, DSD26-L150 according to ZHAGA Book 14; GR6d socket with push in & push out system; Phase selection L1, L2 and L3 possible when installed; Adjustable output current between 350-1050mA via DIP switch (adjustable output currents: 350mA, 400mA, 450mA, 550mA, 700mA, 800mA, 1050mA); housing: polycarbonate / aluminium; Color: white; Dimension: 672mm 13.8mm (31mm) x 31.5mm; protection class: I; Protection type: IP20; Mains voltage: 220-240V ~50/60Hz; AC Voltage: 198-264V; Overvoltage resistance: 320V, 1h; Typical power consumption (at full load) 56.6W; Power consumption in stand-by <0.5W; inrush current: 20 A, 280 μs; 22 pieces on B16A; 37 pieces on C16A; Output voltage range: 20-48V; Maximum output voltage: 60V; Maximum secondary power: 50.4W; Output current tolerance: +/- 5%; Output current NF residual ripple (<120Hz): +/- 3%; Output PstLM: <1; Output SVM: <0.4; Efficiency (at 230 V, 50 Hz, full load): 89%; λ (at 230 V, 50 Hz, full load): 0.96; THD (at 230 V, 50 Hz, full load): 50,000; Lifetime at Ta 25°C: >50,000h; Ambient temperature range Ta: -20 to +40°C; Maximum case temperature Tc: 75°C; glow wire test: 750°C; Dimming standard: DALI-2; Dimming method: AM; Dimming range: 1-100%; including GR6d retaining element for 3-phase power rails with locking mechanism.

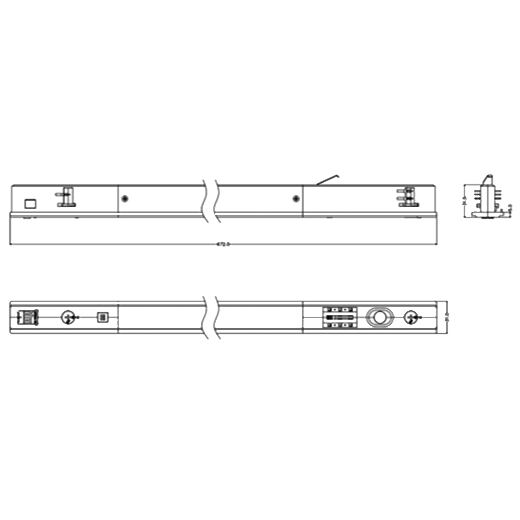

Technical Drawing
Application: Indoor
Product Category: InTrack Driver
Mounting Type: GR6D-15
Housing Color: White
Material: Polycarbonate / Aluminium
IP: 20
LED Driver: DALI Dim
System Power: 50.4W
LED Current: 350mA-1050mA
Measurements: 672mm x 13.8mm (31mm)
Height: 31,5mm
Net Weight: 330g
