Code:FF3-8403507N-BS-IP

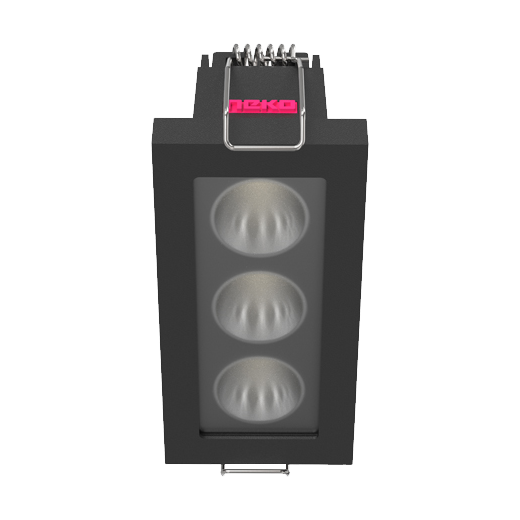

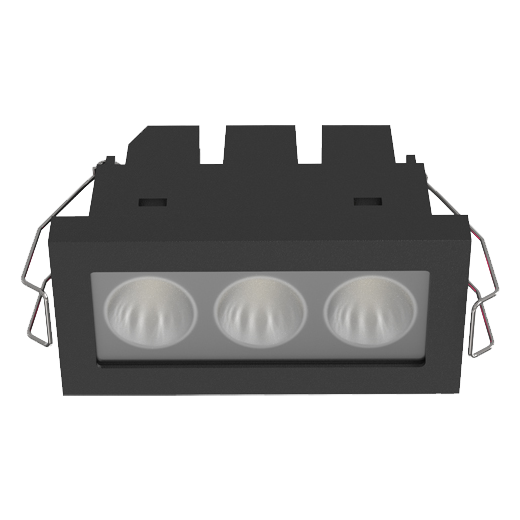

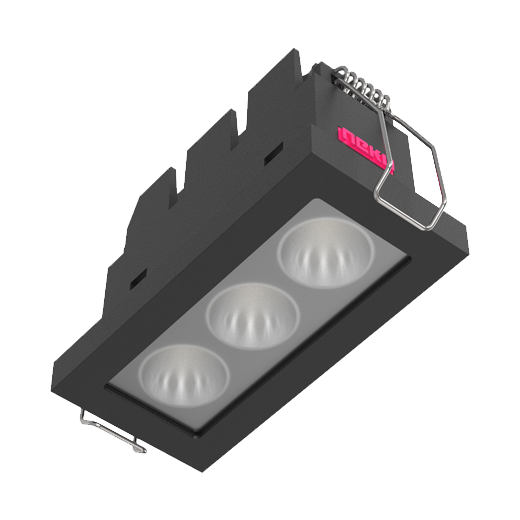

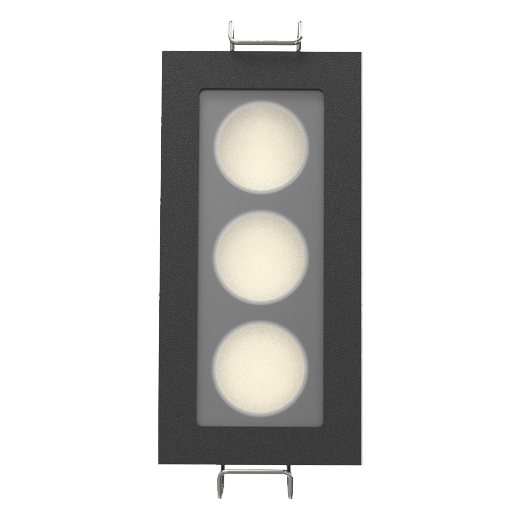

FUSION Front IP65 Downlight
Square recessed ceiling downlight made of die-cast aluminium with black powder-coating finish (RAL 9005) and specular reflector; LED 7W; measurement 102mm x 50mm; ceiling cutout of 94mm x 37mm with a narrow mounting trim; CCT 4000K with an LED Output of 800lm; decent color rendering at an index of CRI80; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient OSRAM LED Chips; 5 years warranty; narrow beam characteristic with 35° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<10); degree of housing protection according to DIN EN 60529 (IP65)

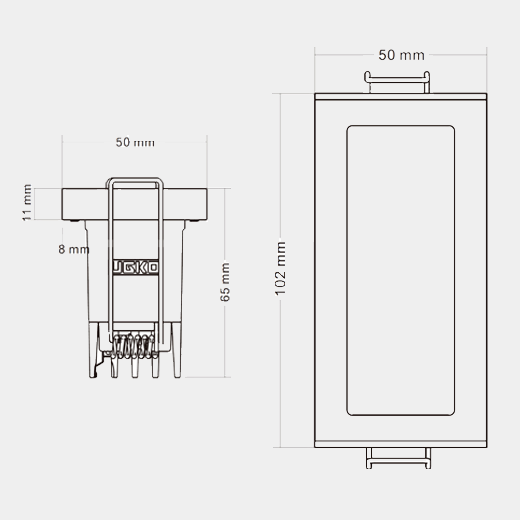

Technical Drawing
Application: Indoor
Product Category: Downlight
Type: Fixed
Mounting Type: Recessed Mounted
Trim: Square
Housing Color: Black
RAL-Code: 9005
Reflector Color: Specular
Material: Die-Cast Aluminium
Finish: Powder-Coated
IP: 65
CCT: 4000K
CRI: 80
LED Output: 800lm
System Output: 460lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: OSRAM
Beam Angle: 35°
UGR: <10
LED Driver: None
LED Power: 7W
System Power: 9W
LED Voltage: 9V
LED Current: 700mA
Measurements: 102mm x 50mm
Cutout: 94mm x 37mm
Height: 65mm
Ceiling Height: 115mm
Ceiling Thickness: 1-25mm
