Code:FX4-8304009N-WS

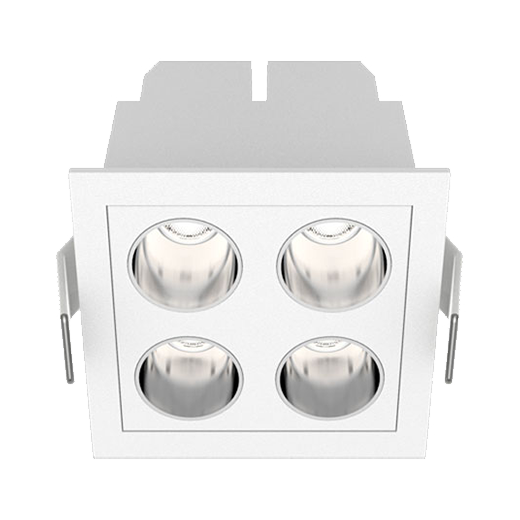

FUSION Fixed Downlight
Square recessed ceiling downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and specular reflector; LED 9W; measurement 75mm x 75mm; ceiling cutout of 65mm x 65mm with a narrow mounting trim; luminaire’s weight is approximately 260g; CCT 3000K with an LED Output of 900lm; decent color rendering at an index of CRI80; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient OSRAM LED Chips; 5 years warranty; wide beam characteristic with 40° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection according to DIN EN 60529 (IP20)
Technical Drawing

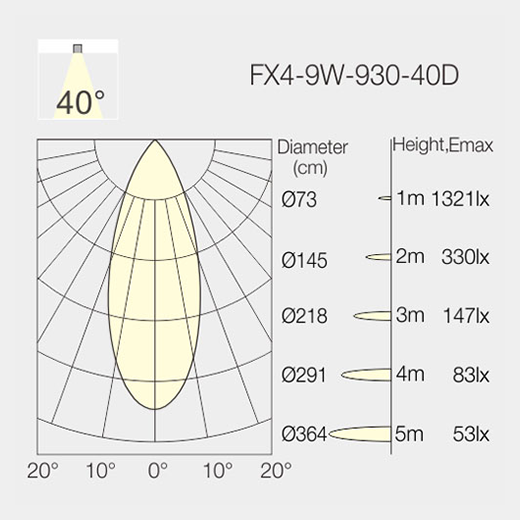

Light Distribution
Application: Indoor
Product Category: Downlight
Type: Fixed
Mounting Type: Recessed Mounted
Trim: Square
Housing Color: White
RAL-Code: 9016
Reflector Color: Specular
Material: Die-Cast Aluminium
Finish: Powder-Coated
IP: 20
CCT: 3000K
CRI: 80
LED Output: 900lm
System Output: 700lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: OSRAM
Beam Angle: 40°
UGR: <19
LED Driver: None
LED Power: 9W
System Power: 11W
LED Voltage: 12V
LED Current: 700mA
Measurements: 75mm x 75mm
Cutout: 65mm x 65mm
Height: 60mm
Ceiling Height: 110mm
Net Weight: 260g
Gross Weight: 340g
Ceiling Thickness: 1-25mm
