Housing Color: Black
Housing Color: Black
Code:G3RS-8S38010A-BN

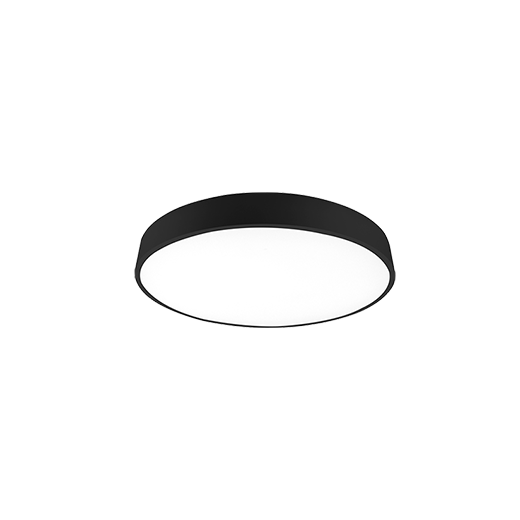

GLAMOR 300 Round LED Ceiling Light
Round Ceiling Light/Wall Light with microprismatic cover made of Aluminium+Plastic with black powder-coating finish (RAL 9005); 0-10V Driver; System Power 10W; measurements Ø300mm x 65mm; CCT 3000K/3500K/4000K Switchable with System Luminous Flux of 1080lm@3000K, 1115lm@3500K and 1150lm@4000K; high color rendering at an index of CRI80; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient EBright LED Chips; 5 years warranty; wide beam characteristic with 80° beam angle; degree of housing protection IP44; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician
Technical Drawing

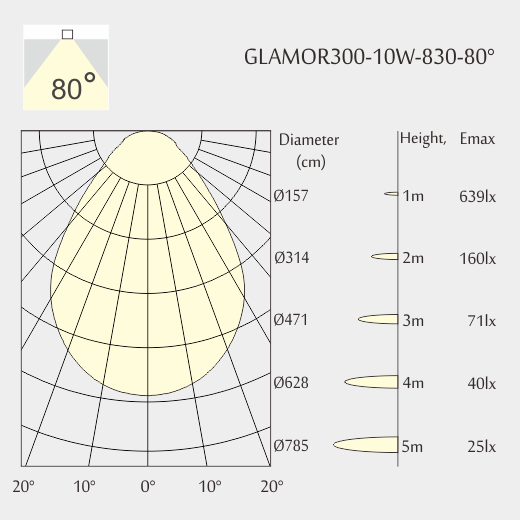

Light Distribution
Application: Indoor
Product Category: Ceiling Light/Wall Light
Mounting Type: Ceiling Mounted/Wall Mounted
Housing Color: Black
RAL-Code: 9005
Material: Aluminium+Plastic
Finish: Powder-Coated
IP: 44
CCT: 3000K-3500K-4000K
CRI: 80
LED Output: Max. 1770lm
System Output: Max. 1150lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: EBright
Beam Angle: 80°
UGR: <19
Optional Accessories: Pendant Wire Kit
LED Driver: 0-10V Dim
LED Power: 8W
System Power: 10W
Input Voltage: 220-240V
LED Voltage: 33V
LED Current: 250mA
Measurements: Ø300mm
Height: 65mm
Net Weight: 1300g
Gross Weight: 1550g
