Code:M3-8273511N-TSA3D-BBM
CLUB Downlight System
Square recessed double head spotlight made of die-cast aluminium with black powder-coating finish (RAL 9005) and matt reflector; System Power 2*13W; measurement 155mm x 85mm; ceiling cutout of 145mm x 75mm with a narrow mounting trim; rotation 355° and pivot max. 18°; CCT 2700K with a System Luminous Flux of 2*750lm; decent color rendering at an index of CRI80; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 35° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP20 (LED Module IP54); impact resistance of the luminaire is in the class IK06; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician

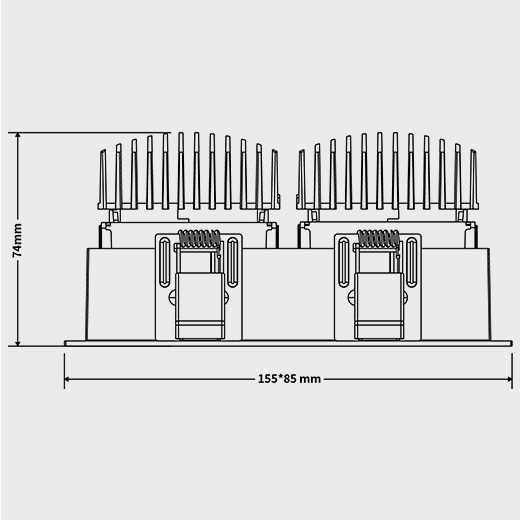

Technical Drawing

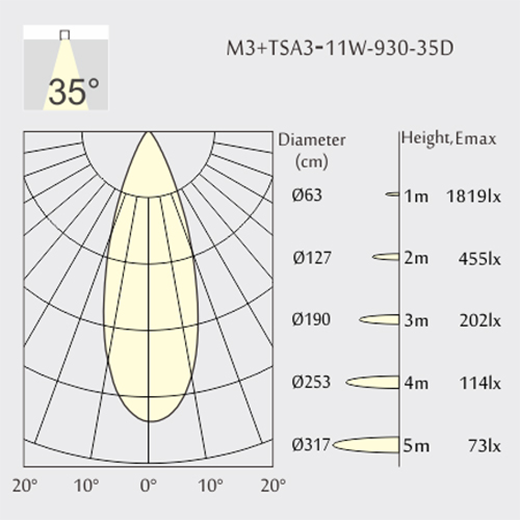

Light Distribution
Application: Indoor
Product Category: Downlight
Mounting Type: Recessed Mounted
Trim: Square
Housing Color: Black
RAL-Code: 9005
Reflector Color: Matt
Material: Die-Cast Aluminium
Finish: Powder-Coated
IP: 20 - (LED Module IP 54)
CCT: 2700K
CRI: 80
LED Output: 2200lm
System Output: 1500lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: CITIZEN
Beam Angle: 35°
UGR: <19
LED Driver: None
LED Power: 22W
System Power: 26W
LED Voltage: 2*31V
LED Current: 350mA
Measurements: 155mm x 85mm
Cutout: 145mm x 75mm
Height: 74mm
Ceiling Height: 124mm
Ceiling Thickness: 1-20mm
Pivot: Max. 18°
Rotation: 355°
