LED Power: 9W
LED Power: 9W
Code:M4P6-9TW5009D-NN

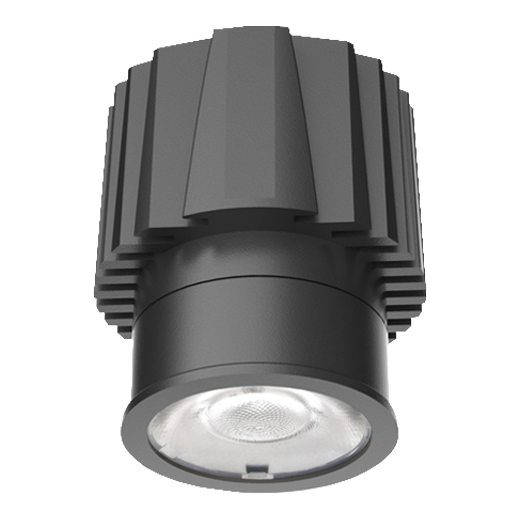

M4 Pro Module
LED Module for NEKO CLUB trim made of die-cast aluminium; black powder-coating finish (RAL 9005); DALI Dim (DT8) Driver; System Power 11W; measurement Ø50mm; luminaires height 76mm; Tunable White(2700K-6500K) (2700K-6500K) with a System Luminous Flux of 620lm-750lm; high color rendering at an index of CRI90; SDCM: 3; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient BRIDGELUX LED Chips; 5 years warranty; beam characteristic with 50° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP54; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician; optionally with Honeycomb, Diffusion Filter, Linear Spread Filter, Single Asymmetric Filter or Double Asymmetric Filter

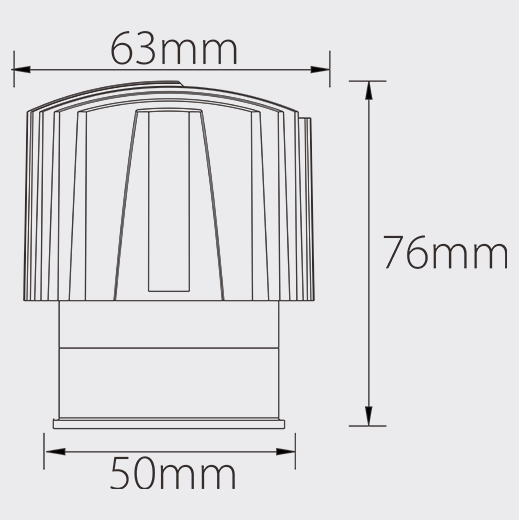

Technical Drawing

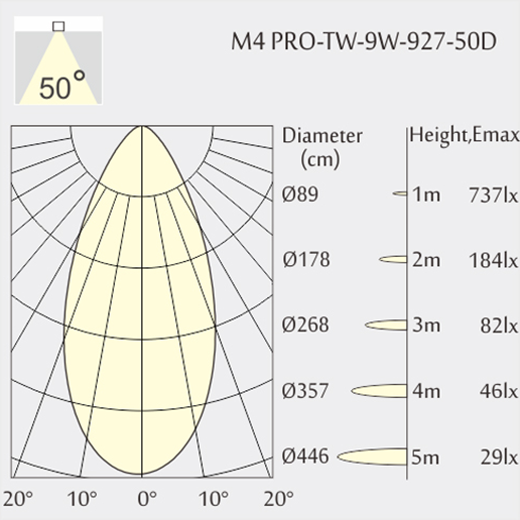

Light Distribution
Light Distribution
Application: Indoor
Product Category: Downlight
Type: Compatible for NEKO CLUB Trims
Mounting Type: Recessed Mounted
Material: Die-Cast Aluminium
Finish: Powder-Coated
IP: 54
CCT: Tunable White(2700K-6500K)
CRI: 90
LED Output: ≤1000lm
System Output: ≤750lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: BRIDGELUX
Beam Angle: 50°
UGR: <19
LED Driver: DALI Dim
LED Power: 9W
System Power: 11W
LED Voltage: 36V
LED Current: 250mA
Measurements: Ø50mm
Height: 76mm
Net Weight: 200g
Gross Weight: 350g
