Code:MCM1-8275015F-WW
MIU Ceiling Light
Round ceiling mounted downlight made of die-cast-aluminium with ON-OFF driver; white powder-coating finish (RAL 9016) and white reflector; LED 13W; measurement Ø72mm; luminaire’s weight is approximately 700g; CCT 2700K with an LED Output of 1650lm; decent color rendering at an index of CRI80; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; medium beam characteristic with 50° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection according to DIN EN 60529 (IP20); can only be mounted in a false ceiling with access from behind the fixation point
Technical Drawing

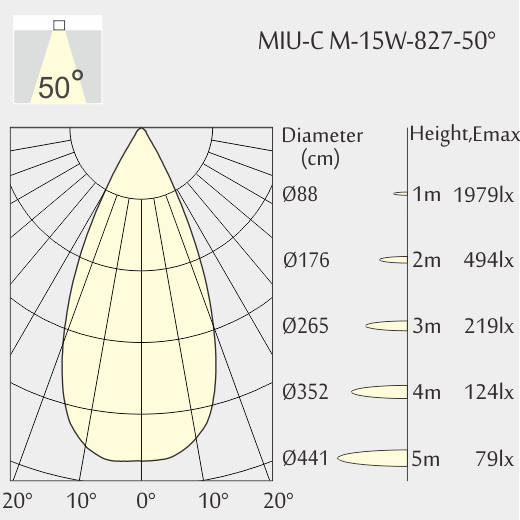

Light Distribution
Application: Indoor
Product Category: Ceiling Light
Mounting Type: Ceiling Mounted
Trim: Round
Housing Color: White
RAL-Code: 9016
Reflector Color: White
Material: Die-Cast-Aluminium
Finish: Powder-Coated
IP: 20
CCT: 2700K
CRI: 80
LED Output: 1650lm
System Output: 1450lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: CITIZEN
Beam Angle: 50°
UGR: <19
Optional Accessories: Honeycomb
LED Driver: ON-OFF
LED Power: 13W
System Power: 15W
Input Voltage: 220–240V ~50/60Hz
LED Voltage: 36V
LED Current: 350mA
Measurements: Ø72mm
Height: 160mm
Net Weight: 700g
Gross Weight: 900g
