Housing Color: Black
Housing Color: Black
Code:MIF3-9273806N-BG

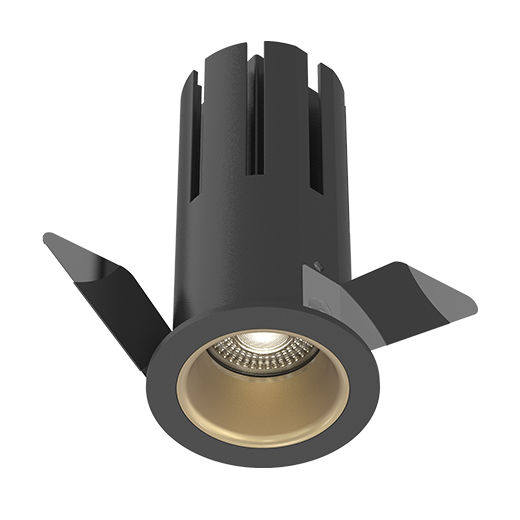

MINUX 38 LED Downlight
Round recessed downlight made of die-cast aluminium with black Wet Painting finish (RAL 9005) and gold reflector; System Power 8W; measurement Ø45mm; narrow mounting trim with a cutout of Ø38mm; luminaire’s height is 84mm; Ceiling Thickness 5-25mm; CCT 2700K with a System Luminous Flux of 420lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 38° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP65(Front) on the visible part of the product one installed; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician

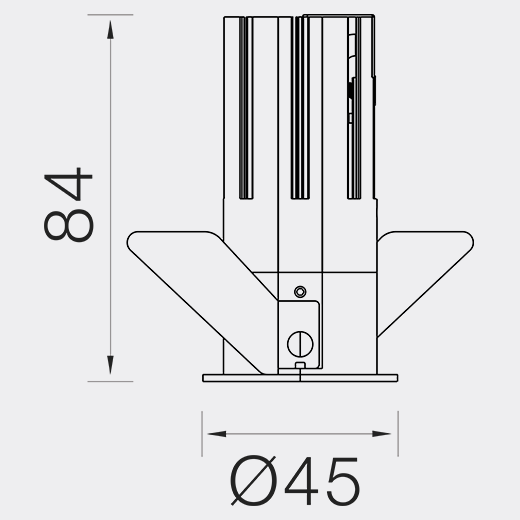

Technical Drawing

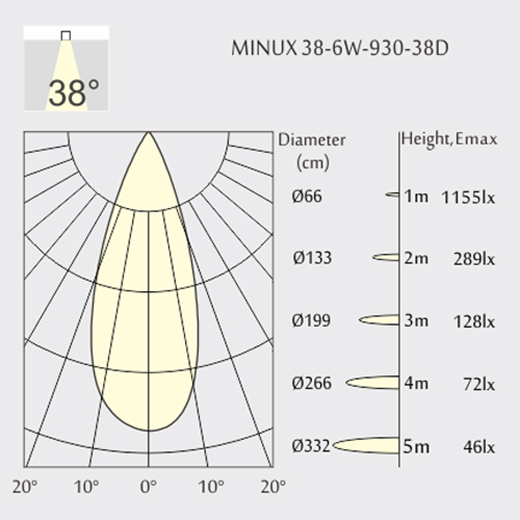

Light Distribution
Application: Indoor
Product Category: Downlight
Type: Fixed
Mounting Type: Recessed Mounted
Trim: Round
Housing Color: Black
RAL-Code: 9005
Reflector Color: Gold
Material: Die-Cast Aluminium
Finish: Wet Painting
IP: 65 (Front)
CCT: 2700K
CRI: 90
LED Output: 500lm
System Output: 420lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: CITIZEN
Beam Angle: 38°
UGR: <19
Optional Accessories: Honeycomb
LED Driver: None
LED Power: 6W
System Power: 8W
LED Voltage: 12V
LED Current: 500mA
Measurements: Ø45mm
Cutout: Ø38mm
Height: 84mm
Ceiling Height: 134mm
Net Weight: 105g
Gross Weight: 215g
Ceiling Thickness: 5-25mm
