Code:ML26-FR2000-B

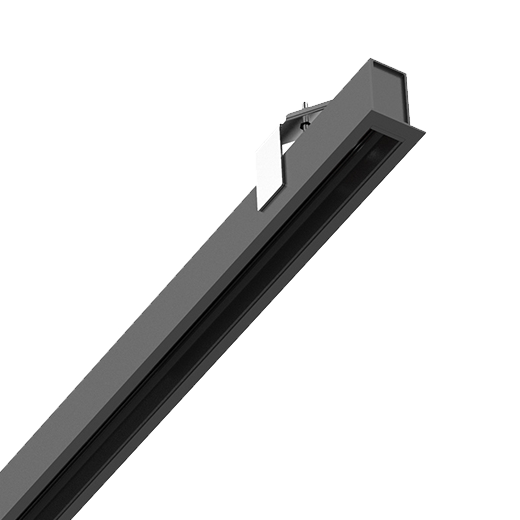

MODULINE 26 48V Track
MODULINE 26 48V Track; Trim Recessed Track made of high quality extruded aluminum profile; powder coated black finish (RAL 9005); track dimensions 2000mm x 38mm; track height 52mm; ceiling cutout of 2010mm x 32mm with a narrow mounting trim; incl. two endcaps; incl. two mounting brackets; optional connectors available in L, T or X shape; optional linear and electrical connectors available; tool-free mounting of light insets by “click-in/out” locking mechanism between track and inset; 5 years warranty; degree of housing protection IP20; protection class III

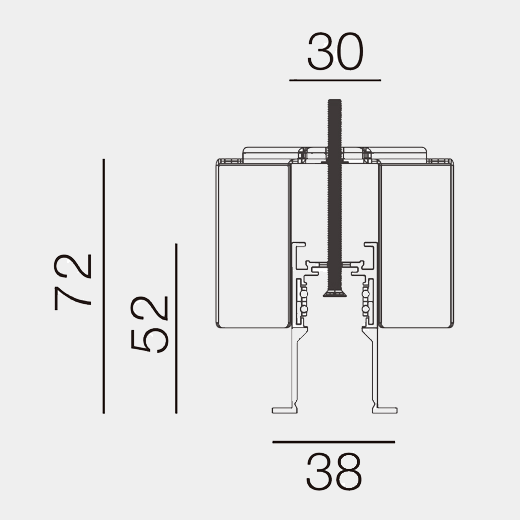

Technical Drawing
Application: Indoor
Product Category: 48V Track
Type: 2000mm
Mounting Type: Trim Recessed Track
Trim: Square
Housing Color: Black
RAL-Code: 9005
Material: Extruded Aluminium Profile
Finish: Powder-Coated
IP: 20
Measurements: 2000mm x 38mm
Cutout: 2010mm x 32mm
Height: 52mm
Ceiling Height: 72mm
