LED Driver: DALI Dim
LED Driver: DALI Dim
Code:MLF1-9272510D-WC

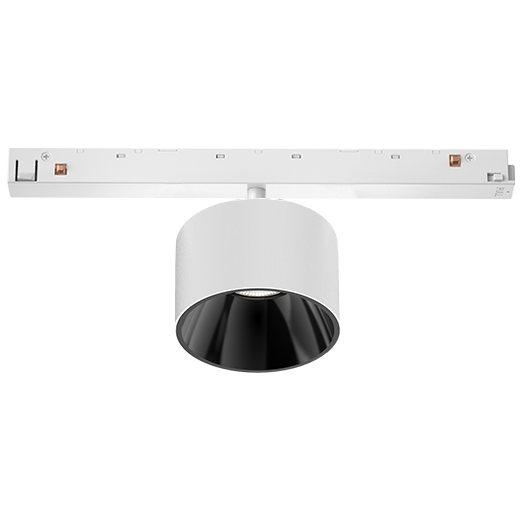

MODULINE 26 48V System Inset
Single Spotlight Inset for 48V Low Voltage System; white finish (RAL 9016) and chrome black (Dark-Light) reflector; DALI Dim Driver; System Power 10W; measurements Ø72mm x 60mm; tool-free installation by “click-in/out” locking mechanism; CCT 2700K with a System luminous flux of 650lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 25° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP20
Technical Drawing
Light Distribution
Application: Indoor
Product Category: Spotlight
Type: Fixed
Mounting Type: Profile Inset
Trim: Round
Housing Color: White
RAL-Code: 9016
Reflector Color: Dark Light
Material: Extruded Aluminium
Finish: Powder Coated
IP: 20
CCT: 2700K
CRI: 90
LED Output: 900lm
System Output: 650lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: CITIZEN
Beam Angle: 25°
UGR: <19
Optional Accessories: Honeycomb
LED Driver: DALI Dim
LED Power: 9W
System Power: 10W
LED Voltage: 48V
Measurements: Ø72mm
Height: 60mm
