LED Driver: DALI Dim
LED Driver: DALI Dim
Code:MLP1-9301812D-BB
MODULINE Linear System Inset
Pendant Spot Inset for 48V Low Voltage System; black finish (RAL 9005) and black reflector; DALI Dim Driver; System Power 12W; measurements Ø40mm x 400mm; CCT 3000K with a System luminous flux of 750lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 18° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP20

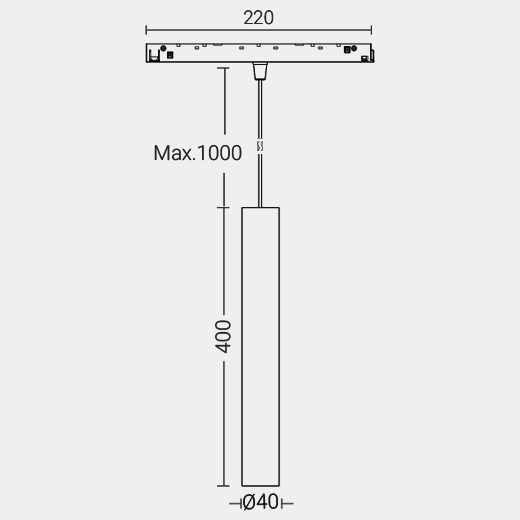

Technical Drawing

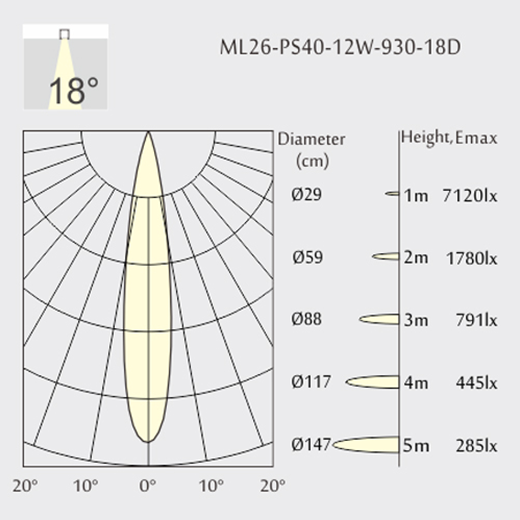

Light Distribution
Application: Indoor
Product Category: Pendant Spot
Type: Fixed
Mounting Type: Profile Inset
Trim: Round
Housing Color: Black
RAL-Code: 9005
Reflector Color: Black
Material: Extruded Aluminium
Finish: Powder Coated
IP: 20
CCT: 3000K
CRI: 90
LED Output: 1100lm
System Output: 750lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: CITIZEN
Beam Angle: 18°
UGR: <19
Optional Accessories: Honeycomb
LED Driver: DALI Dim
LED Power: 11W
System Power: 12W
LED Voltage: 48V
Measurements: Ø40mm
Height: 400mm
Net Weight: 520g
Gross Weight: 660g
