LED Driver: ON-OFF
LED Driver: ON-OFF
Code:MLR0-9301803F-WB

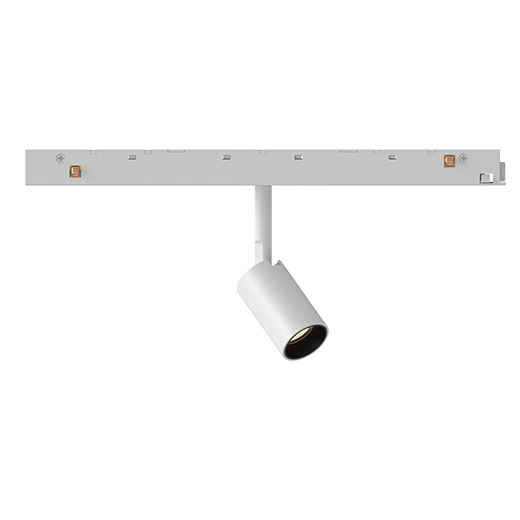

MODULINE Linear System Inset
Single Spotlight Inset for 48V Low Voltage System; white finish (RAL 9016) and black reflector; ON-OFF Driver; System Power 3W; measurements Ø25mm x 42mm; CCT 3000K with a System luminous flux of 190lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient OSRAM LED Chips; 5 years warranty; beam characteristic with 18° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP20

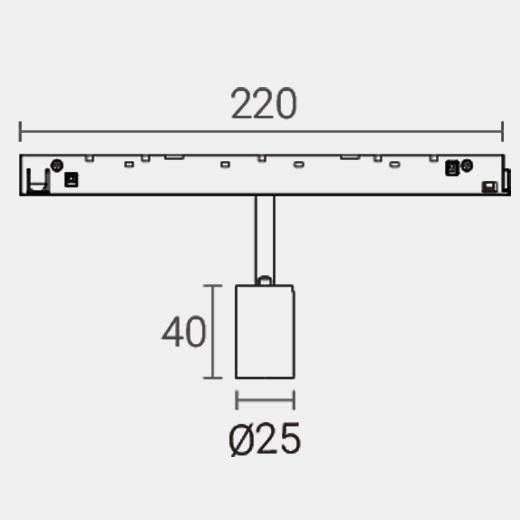

Technical Drawing

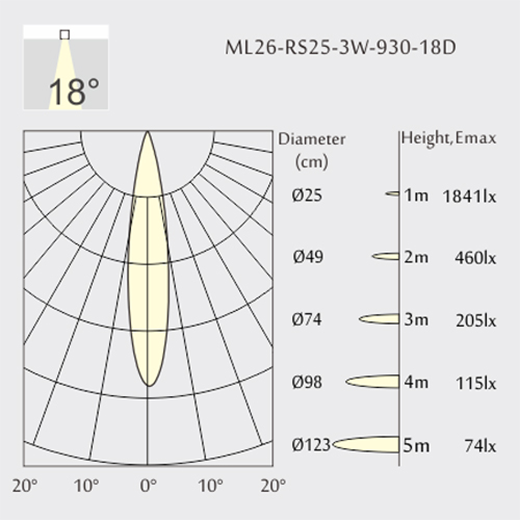

Light Distribution
Application: Indoor
Product Category: Spotlight
Type: Adjustable
Mounting Type: Profile Inset
Trim: Round
Housing Color: White
RAL-Code: 9016
Reflector Color: Black
Material: Extruded Aluminium
Finish: Powder Coated
IP: 20
CCT: 3000K
CRI: 90
LED Output: 230lm
System Output: 190lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
Beam Angle: 18°
UGR: <19
Optional Accessories: Honeycomb
LED Driver: ON-OFF
LED Power: 2W
System Power: 3W
LED Voltage: 48V
Measurements: Ø25mm
Height: 42mm
