LED Driver: 1-10V Dim
LED Driver: 1-10V Dim
Code:MLRH-9273010A-WW
MODULINE 26 48V System Inset
Round downlight Inset for 48V Low Voltage System; Can only fit with Standard Track; white finish (RAL 9016) and white reflector; 1-10V Dim Driver; System Power 10W; measurements Ø80mm x 120mm; tool-free installation by “click-in/out” locking mechanism; CCT 2700K with a System luminous flux of 900lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 30° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP20

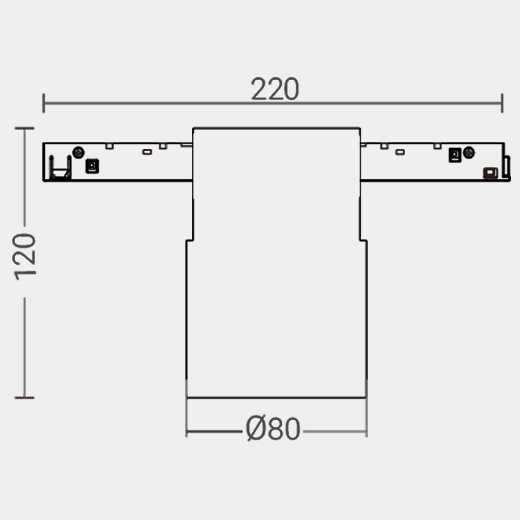

Technical Drawing

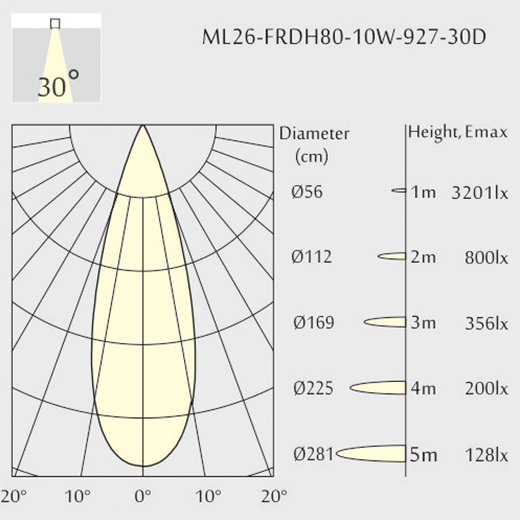

Light Distribution
Application: Indoor
Product Category: Downlight
Type: Fixed
Mounting Type: Profile Inset
Trim: Round
Housing Color: White
RAL-Code: 9016
Reflector Color: White
Material: Die-Cast Aluminium
Finish: Powder-Coated
IP: 20
CCT: 2700K
CRI: 90
LED Output: 1100lm
System Output: 900lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: CITIZEN
Beam Angle: 30°
UGR: <19
Optional Accessories: Honeycomb
LED Driver: 1-10V Dim
LED Power: 9W
System Power: 10W
LED Voltage: 36V
LED Current: 250mA
Measurements: Ø80mm
Height: 120mm
