LED Driver: ON-OFF
LED Driver: ON-OFF
Code:NR2H-8275013F-DN
NEPTUNE Outdoor Projector
Projector Light round made of aluminium; on-off LED Driver is include; rear wiring; dark-grey (RAL 7024); triple layer coating finish for high corrosion and UV resistance; chemical conversion coating on the aluminium surface followed by the first layer of anodising; second layer of epoxy paint; third polyester powder; salt spray test passed over 1000 hours; System Power 13W; CCT 2700K with an System Output of 800lm; decent color rendering at an index of CRI80; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CREE LED Chips; 5 years warranty; beam characteristic with 50° beam angle; UGR<19; degree of housing protection IP66; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician
Technical Drawing

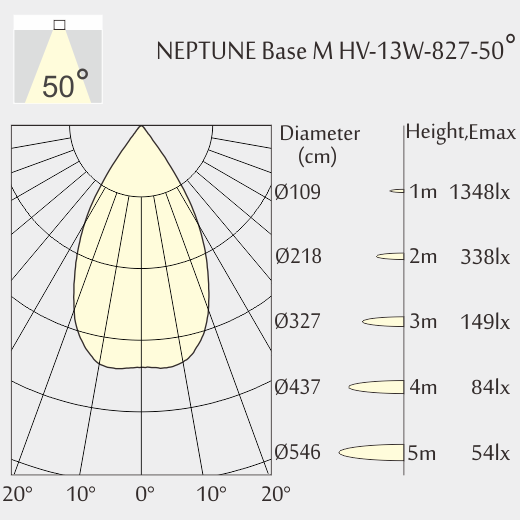

Light Distribution
Application: Outdoor
Product Category: Projector
Mounting Type: Ceiling Mounted
Housing Color: Dark Grey
RAL-Code: 7024
Material: Aluminium
Finish: Triple Layer Coating
IP: 66
CCT: 2700K
CRI: 80
System Output: 800lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: CREE
Beam Angle: 50°
UGR: <19
Optional Accessories: Honeycomb
LED Driver: ON-OFF
LED Power: 11W
System Power: 13W
Input Voltage: 220-240V AC
LED Voltage: 36V
LED Current: 300mA
Measurements: Ø84mm
Height: 109mm
Net Weight: 900g
Gross Weight: 1000g
Pivot: 120°
Rotation: 355°
