Code:NU3C-8275512N-DN

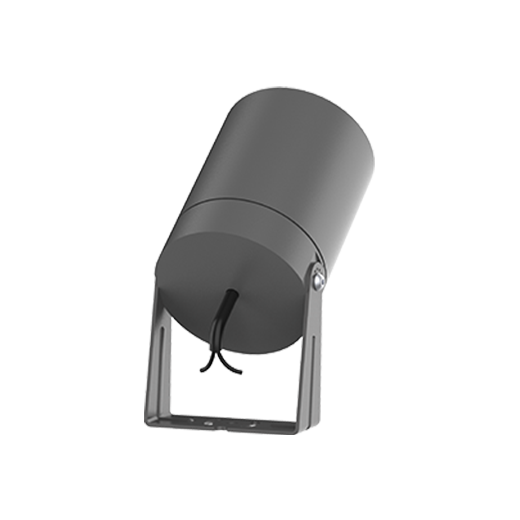

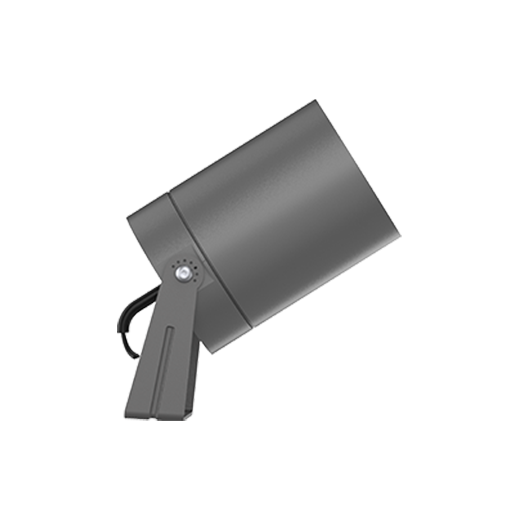

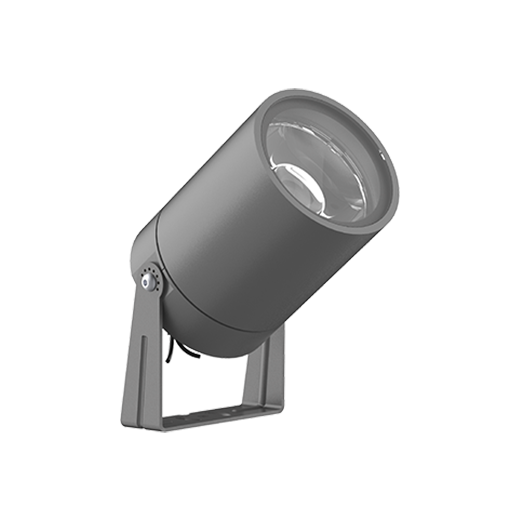

NEPTUNE Outdoor Projector
Projector Light round made of aluminium; external 24VDC LED Driver is required; Compatible with On-Off/ Phase Dim/ 1-10V Dim/ DALI Dim Remote 24VDC LED Driver, Dimming Range: 5%-100%; dark-grey (RAL 7024); triple layer coating finish for high corrosion and UV resistance; chemical conversion coating on the aluminium surface followed by the first layer of anodising; second layer of epoxy paint; third polyester powder; salt spray test passed over 1000 hours; System Power 12W; dimensions Ø84mm x 117mm; luminaire’s weight is approximately 1150g; CCT 2700K with an System Output of 800lm; decent color rendering at an index of CRI80; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CREE LED Chips; 5 years warranty; beam characteristic with 55° beam angle; UGR<19; degree of housing protection IP67; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician; including installation stake

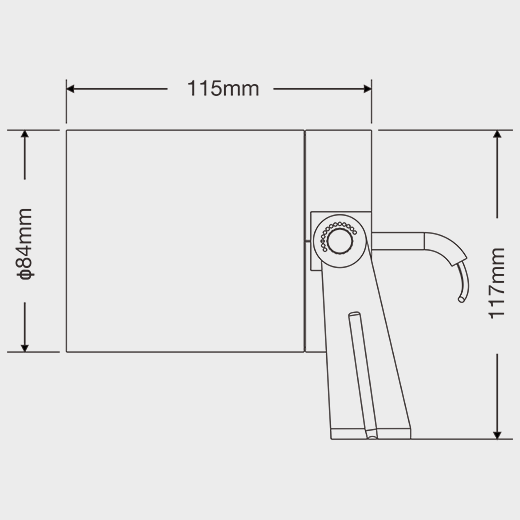

Technical Drawing

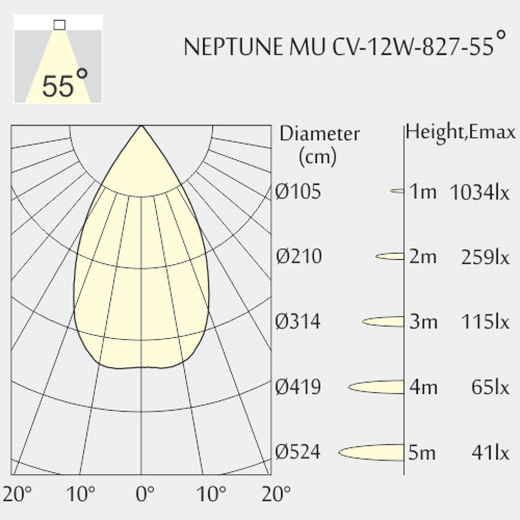

Light Distribution
Application: Outdoor
Product Category: Projector
Type: Standard
Mounting Type: With Stake
Trim: Round
Housing Color: Dark Grey
RAL-Code: 7024
Material: Aluminium
Finish: Triple Layer Coating
IP: 67
CCT: 2700K
CRI: 80
System Output: 800lm
Lifetime: 50000h@L80B10
LED Chip: CREE
Beam Angle: 55°
UGR: <19
Optional Accessories: Honeycomb,Spike
LED Driver: None
LED Power: 11W
System Power: 12W
LED Voltage: 24V
Measurements: Ø84mm
Height: 117mm
Net Weight: 1150g
Gross Weight: 1250g
