Housing Color: Silver
Housing Color: Silver
Code:O5P01211-840LPF-VN
DASH 50 Office Suspended
Pendant LED luminaire with direct beam made of high-quality extruded aluminium profile; silver powder-coating finish – textured matt (RAL 9006); light control directly through special facetted BAP-Louvre bronze specular (UGR80; Binning initial <= MacAdam 3; after a lifetime of 75000h L80B10 min. 80% of the luminous flux with energy efficient LUMINUS LED Chips of the latest generation; 5 years warranty; degree of housing protection IP20; RG<1 (EN62471); protection class I; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician

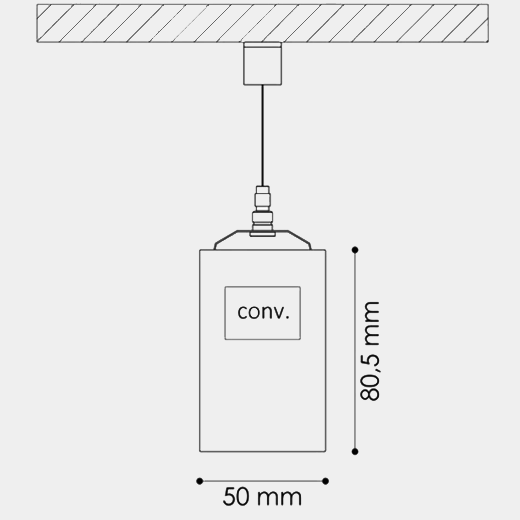

Technical Drawing

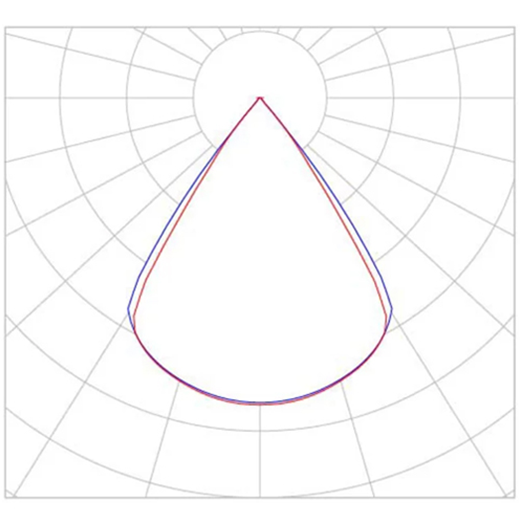

Light Distribution
Application: Indoor
Product Category: Linear Light
Mounting Type: Pendant
Trim: Square
Housing Color: Silver
RAL-Code: 9006
Reflector Color: Bronze Specular
Material: Extruded Aluminium Profile
Finish: Powder-Coated
IP: 20
CCT: 4000K
CRI: 80
System Output: 2415lm
Lifetime: 75000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: LUMINUS
Beam Angle: Direct
UGR: <19
LED Driver: ON-OFF
LED Power: Low Power
System Power: 20W
Measurements: 1211mm x 50mm
Height: 80.5mm
Net Weight: 3200g
