LED Power: 5W
LED Power: 5W
Code:PAH1-8A3C607F-DN
Outdoor Garden Light
Bollard made of aluminium with integrated ON-OFF Driver; dark-grey triple-layer-coating finish (RAL 7024); System Power 7W; measurement 100mm x 100mm; height of the luminaire is 650mm; the exposed cable length is approximately 3000mm; CCT 2700K-3000K changeable with an System Luminous Flux of 485lm; decent color rendering at an index of CRI80; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient LED Chips; 5 years warranty; beam characteristic with 130° beam angle; degree of housing protection IP66

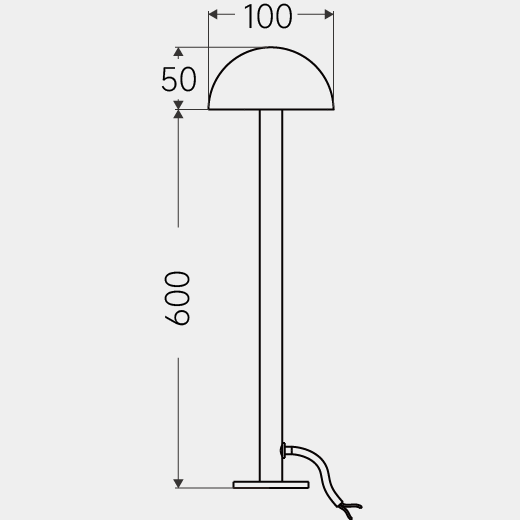

Technical Drawing

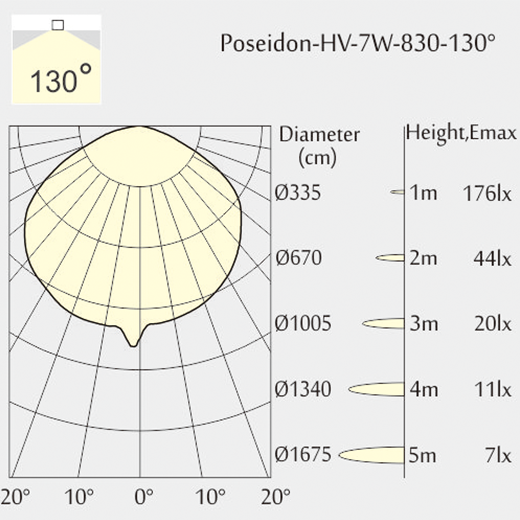

Light Distribution
Application: Outdoor
Product Category: Garden Luminaire
Mounting Type: Bollard
Trim: Round
Housing Color: Dark Grey
RAL-Code: 7024
Material: Aluminium
Finish: Triple Layer Coating
IP: 66
CCT: 2700K-3000K
CRI: 80
LED Output: 610lm
System Output: 485lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: OSRAM
Beam Angle: 360°
Optional Accessories: Pole spike,Spike with pedal,Base,Extension Pole
LED Driver: ON-OFF
LED Power: 5W
System Power: 7W
LED Voltage: 9V
LED Current: 550mA
Measurements: Ø100mm
Height: 650mm
Net Weight: 560g
Gross Weight: 700g
