LED Driver: ON-OFF
LED Driver: ON-OFF
Code:ROK1-8273528F-WB
ROXY LED Tracklight
Tracklight made of extrusion aluminium with white powder-coating finish (RAL 9016) and black reflector; ON-OFF Driver; System Power 28W, tracklights measurement Ø72mm; tracklights length 137mm; track adapters length 162mm; luminaire’s weight is approximately 750g; rotation 355° and pivot max. 90°; CCT 2700K with a System Output of 2600lm; decent color rendering at an index of CRI80; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; medium beam characteristic with 35° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection according to DIN EN 60529 (IP20); Compatible with GLOBAL/ POWERGEAR 3-Circuit Track System

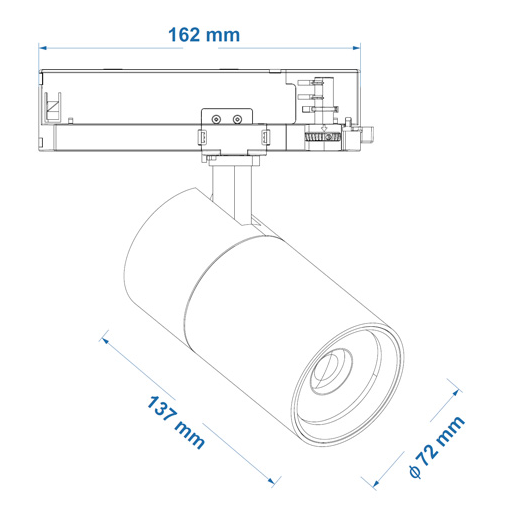

Technical Drawing
Light Distribution
Application: Indoor
Product Category: Tracklight
Mounting Type: Track Mounted
Trim: Round
Housing Color: White
RAL-Code: 9016
Reflector Color: Black
Material: Extrusion Aluminium
Finish: Powder-Coated
IP: 20
CCT: 2700K
CRI: 80
LED Output: 2900lm
System Output: 2600lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: CITIZEN
Beam Angle: 35°
UGR: <19
Optional Accessories: Honeycomb
LED Driver: ON-OFF
LED Power: 25W
System Power: 28W
LED Voltage: 36V
LED Current: 700mA
Measurements: Ø72mm
Height: 137mm
Net Weight: 750g
Gross Weight: 1050g
Pivot: Max. 90°
Rotation: 355°
