LED Driver: ON-OFF
LED Driver: ON-OFF
Code:ROS1-827Z315F-BB

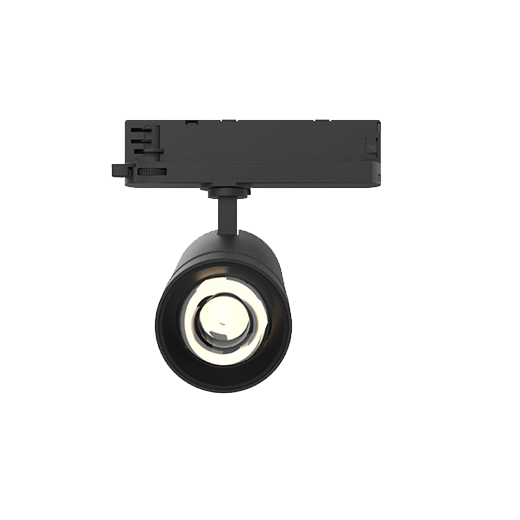

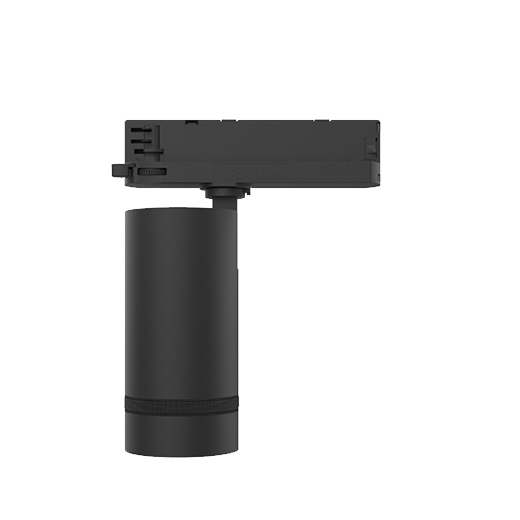

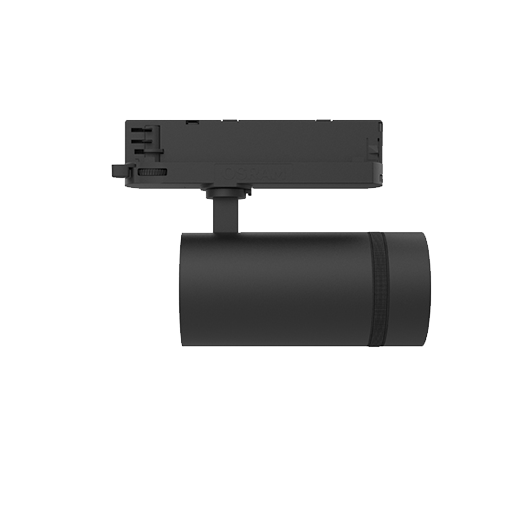

ROXY S Zooming Tracklight
Tracklight made of extrusion aluminium with black powder-coating finish (RAL 9005) and black reflector; LED 13W, measurement Ø72mm; tracklights length 140mm; track adapters length 162mm; luminaire’s weight is approximately 600g; rotation 355° and pivot max. 90°; CCT 2700K with an LED Output of 1500lm; with ON-OFF Driver; decent color rendering at an index of CRI80; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; adjustable beam characteristic with 18°-35° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection according to DIN EN 60529 (IP20); Compatible with GLOBAL/ POWERGEAR 3-Circuit Track System

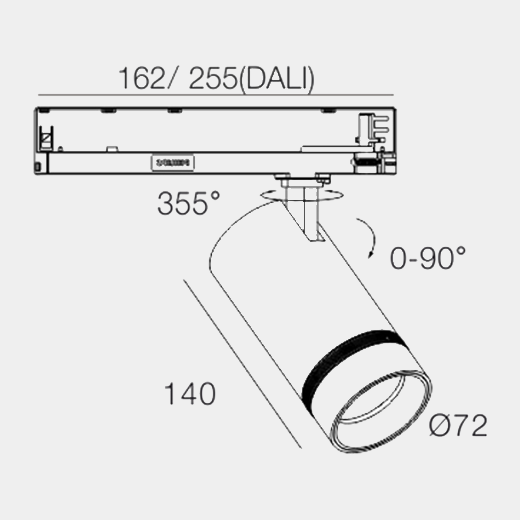

Technical Drawing

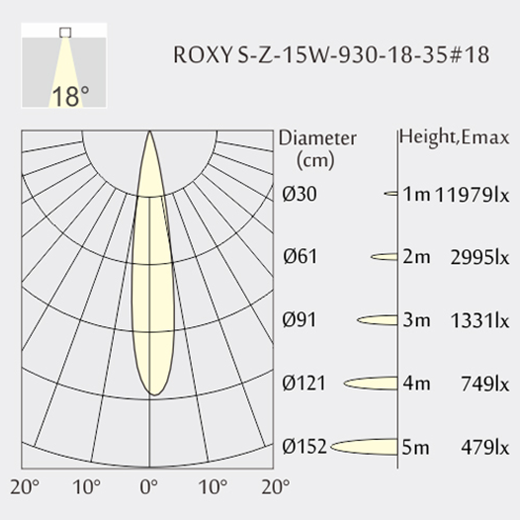

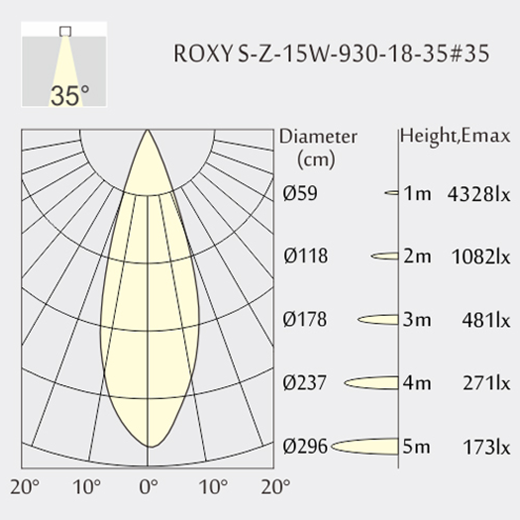

Light Distribution
Light Distribution
Application: Indoor
Product Category: Tracklight
Mounting Type: Track Mounted
Trim: Round
Housing Color: Black
RAL-Code: 9005
Reflector Color: Black
Material: Extrusion Aluminium
Finish: Powder-Coated
IP: 20
CCT: 2700K
CRI: 80
LED Output: 1500lm
System Output: 1300lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: CITIZEN
Beam Angle: 18°-35°
UGR: <19
Optional Accessories: Honeycomb
LED Driver: ON-OFF
LED Power: 13W
System Power: 15W
LED Voltage: 36V
LED Current: 350mA
Measurements: Ø72mm
Height: 140mm
Net Weight: 600g
Gross Weight: 940g
Pivot: 355°
Rotation: Max. 90°
