Housing Color: Brushed Bronze
Housing Color: Brushed Bronze
Code:S07A-9308040F-BR-U
SPACE 07 Pendant Light With Lifter
Pendant LED luminaire with direct & indirect beam made of high-quality extruded aluminium profile; brushed bronze finish; luminaire incl. white canopy (555mm x 55mm x 68mm) with transparent feeder cable as well as lifters for stepless regulation of mounting height; ON-OFF Driver is integrated into the luminaire housing; System Power (Total power consumption) 40W – Low Power; Dimensions of the profile channel (LxWxH): 1200mm x 10mm x 80mm; CCT 3000K with a System Luminous Flux of 2450lm; decent color rendering at an index of CRI>90; Binning initial <= MacAdam 3; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient LED Chips of the latest generation; 5 years warranty; degree of housing protection IP20; RG<1 (EN62471); protection class I
Technical Drawing

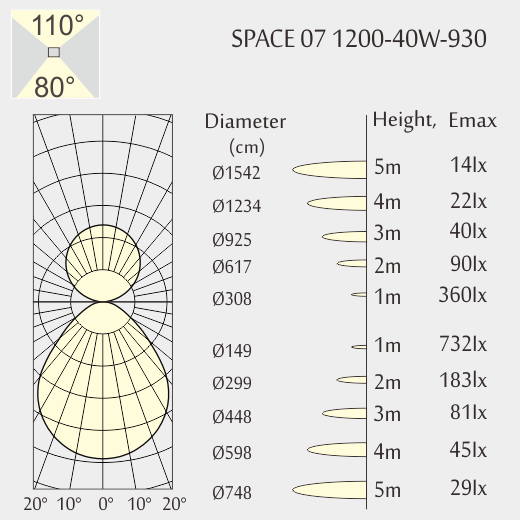

Light Distribution
Application: Indoor
Product Category: Pendant Light
Mounting Type: Ceiling Mounted
Housing Color: Brushed Bronze
Material: Aluminium
Finish: Electroplating
IP: 20
CCT: 3000K (LED)
CRI: 90
LED Output: 3000lm
System Output: 2450lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3 (LED)
LED Chip: SMD 2835
Beam Angle: 80°↓110°↑
LED Driver: ON-OFF
LED Power: 38W
System Power: 40W
Input Voltage: 220-240 VAC
LED Voltage: 36V
LED Current: 1050mA
Measurements: 1200 mm x 10mm
Height: 148mm
Net Weight: 3700g
Gross Weight: 4650g
