Code:SJD-9273809P-WW

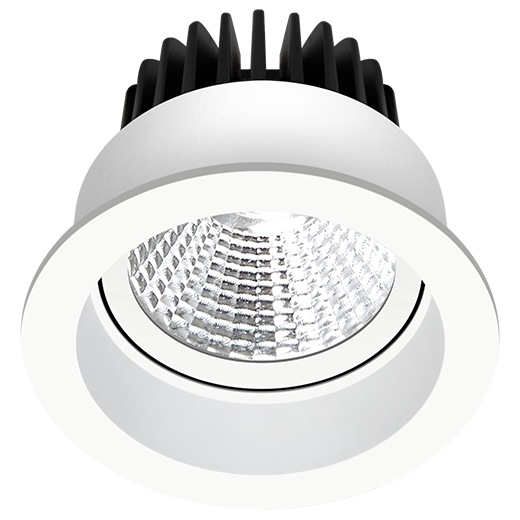

SKYJACK Tiltable Downlight
Round recessed ceiling downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; Phase Dim Driver; System Power 11W; measurement Ø82mm; ceiling cutout of Ø70mm with a narrow mounting trim; luminaire’s height is 64mm; pivot max. 30°; CCT 2700K with a System Luminous Flux of 700lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient BRIDGELUX LED Chips; 5 years warranty; medium beam characteristic with 38° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP44 on the visible part of the product one installed; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician
Technical Drawing
Light Distribution
Application: Indoor
Product Category: Downlight
Type: Adjustable
Mounting Type: Recessed Mounted
Trim: Round
Housing Color: White
RAL-Code: 9016
Reflector Color: White
Material: Die-Cast Aluminium
Finish: Powder-Coated
IP: 44
CCT: 2700K
CRI: 90
LED Output: 900lm
System Output: 700lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: BRIDGELUX
Beam Angle: 38°
UGR: <19

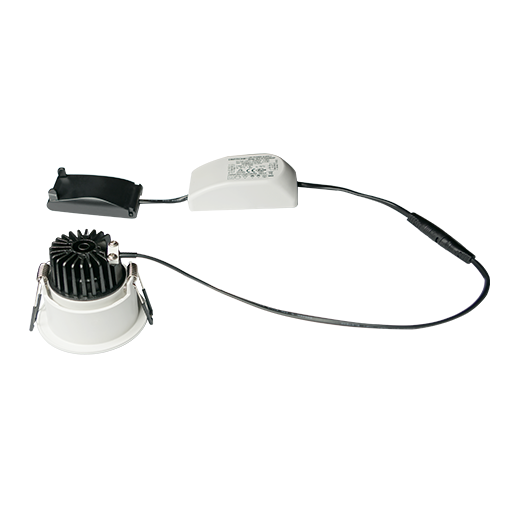

LED Driver: Phase Dim
LED Power: 9W
System Power: 11W
LED Voltage: 18V
LED Current: 500mA
Measurements: Ø82mm
Cutout: Ø70mm
Height: 64mm
Net Weight: 240g
Gross Weight: 300g
Ceiling Thickness: 1-25mm
Pivot: Max. 30°
