Code:SMR1G2-9272018N-WB

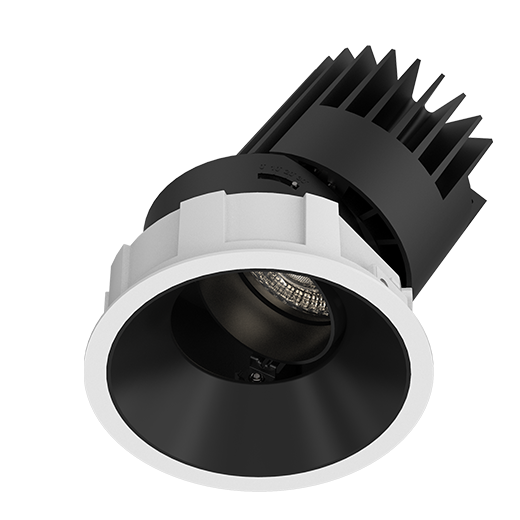

SENSE 125 G2 Round LED Downlight
Round recessed downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and black reflector; System Power 21W; measurements Ø137mm x 159mm; ceiling cutout of Ø125mm with a narrow mounting trim; ceiling thickness 1-30mm; rotation 355° and pivot max. 30°; CCT 2700K with a System luminous flux of 1600lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 20° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP54; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician

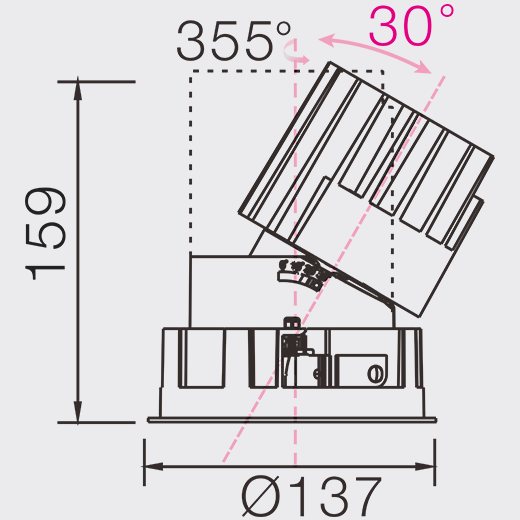

Technical Drawing
1-18w-930-20d.png)

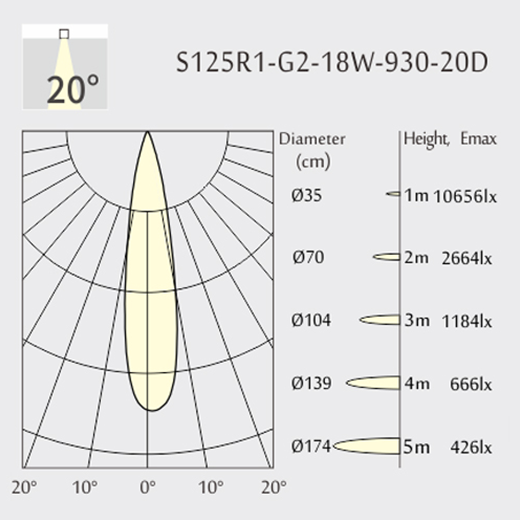

Light Distribution
Application: Indoor
Product Category: Downlight
Type: Adjustable
Mounting Type: Recessed Mounted
Trim: Round
Housing Color: White
RAL-Code: 9016
Reflector Color: Black
Material: Die-Cast Aluminium
Finish: Powder-Coated
IP: 54
CCT: 2700K
CRI: 90
LED Output: 2100lm
System Output: 1600lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: CITIZEN
Beam Angle: 20°
UGR: <19
LED Driver: None
LED Power: 18W
System Power: 21W
LED Voltage: 36V
LED Current: 500mA
Measurements: Ø137mm
Cutout: Ø125mm
Height: 159mm
Ceiling Height: 209mm
Net Weight: 932g
Gross Weight: 1282g
Ceiling Thickness: 1-30mm
Pivot: Max. 30°
Rotation: 355°
