Trim: Trimless Round
Trim: Trimless Round
Code:SSR8G2-9272013N-WC
SENSE 100 G2 Round LED Downlight
Round recessed trimless downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and chrome black (dark-light) reflector; System Power 15W; measurements Ø96mm x 131mm; ceiling cutout of Ø100mm with a trimless mounting; ceiling thickness 12.5-25mm; CCT 2700K with a System luminous flux of 1100lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 20° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP54; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician

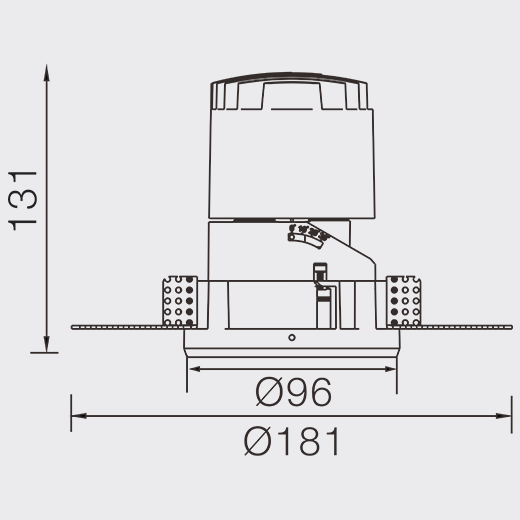

Technical Drawing
7-13w-927-20d.png)

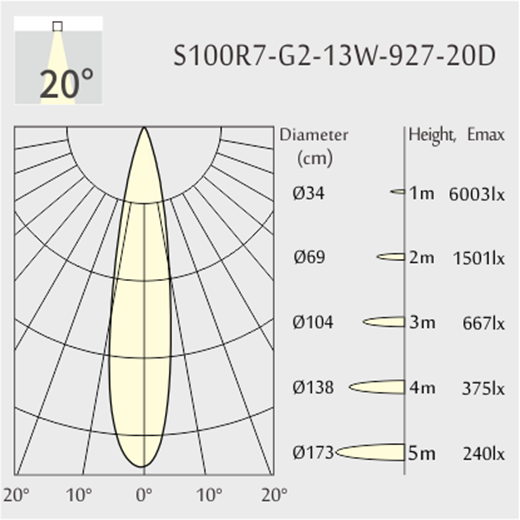

Light Distribution
Application: Indoor
Product Category: Downlight
Type: Fixed (Horn Type)
Mounting Type: Recessed Mounted
Trim: Trimless Round
Housing Color: White
RAL-Code: 9016
Reflector Color: Dark Light
Material: Die-Cast Aluminium
Finish: Powder-Coated
IP: 54
CCT: 2700K
CRI: 90
LED Output: 1500lm
System Output: 1100lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: CITIZEN
Beam Angle: 20°
UGR: <19
LED Driver: None
LED Power: 13W
System Power: 15W
LED Voltage: 36V
LED Current: 350mA
Measurements: Ø96mm
Cutout: Ø100mm
Height: 131mm
Ceiling Height: 181mm
Net Weight: 655g
Gross Weight: 935g
Ceiling Thickness: 12.5-25mm
