Trim: Trimless Square
Trim: Trimless Square
Code:ST33G2-9301823N-WS

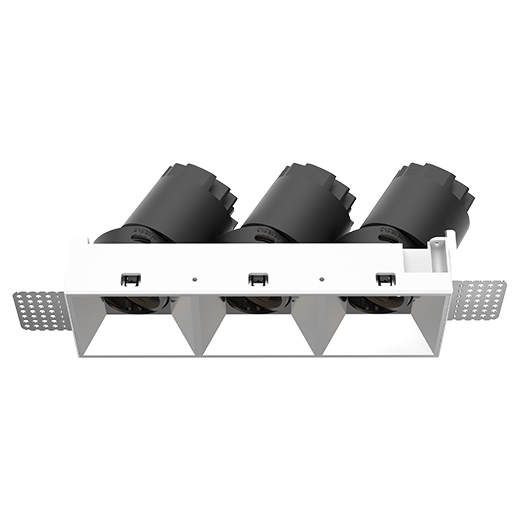

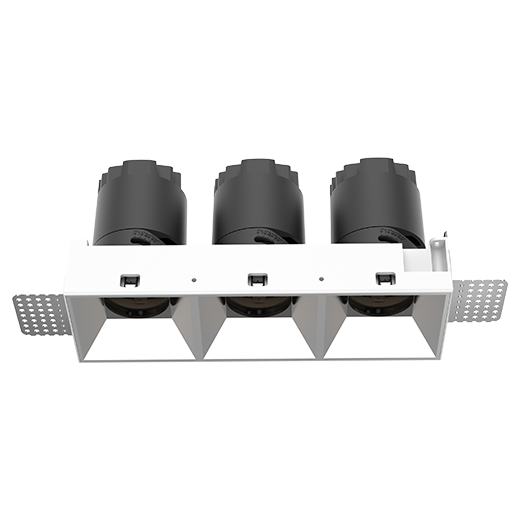

SENSE Modular Downlight
Square recessed trimless downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and specular reflector; System Power 3*9W; measurements 195mm x 67mm x 97mm ceiling cutout of 197mm x 70mm with a trimless mounting; ceiling thickness 1-25mm; rotation 355° and pivot max. 30°; CCT 3000K with a System luminous flux of 3*650lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 18° beam angle;lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP20 (LED Module IP54); light source replaceable by a qualified electrician; driver replaceable by a qualified electrician

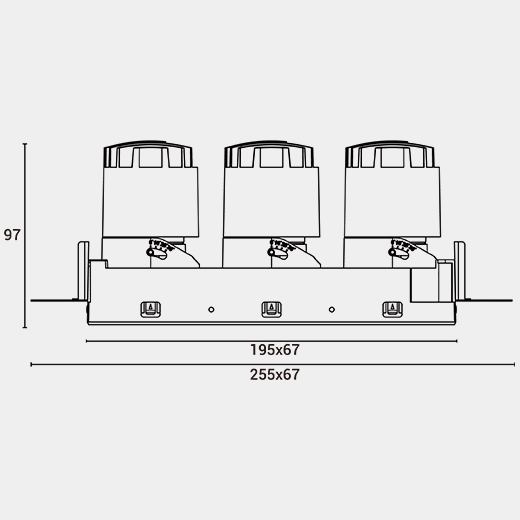

Technical Drawing

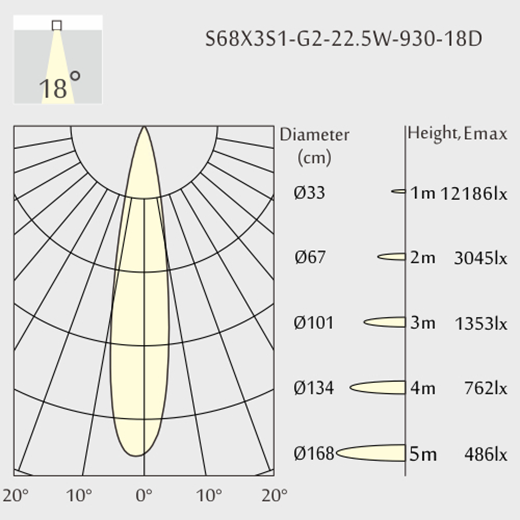

Light Distribution
Application: Indoor
Product Category: Downlight
Type: Adjustable
Mounting Type: Recessed Mounted
Trim: Trimless Square
Housing Color: White
RAL-Code: 9016
Reflector Color: Specular
Material: Die-Cast Aluminium
Finish: Powder-Coated
IP: 20 - (LED Module IP 54)
CCT: 3000K
CRI: 90
LED Output: 3*900lm
System Output: 3*650lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: CITIZEN
Beam Angle: 18°
UGR: <19
LED Driver: None
LED Power: 3*7.5W
System Power: 3*9W
LED Voltage: 2*31V
LED Current: 250mA
Measurements: 195mm x 67mm
Cutout: 197mm x 70mm
Height: 97mm
Ceiling Height: 147mm
Ceiling Thickness: 2-22.5mm
Pivot: 30°
Rotation: 355°
