Code:SV60CLR066F-83095061D-BN-C

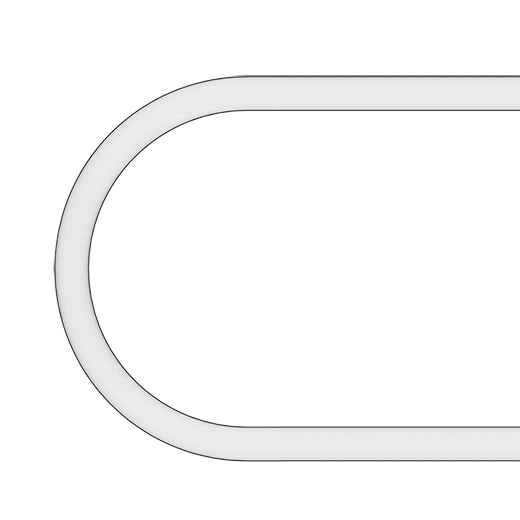

SPACE 60 EVO Oval Trim Recessed Luminaire
Trim recessed LED luminaire with direct beam made of high-quality extruded aluminium profile; black powder-coating finish – textured matt (RAL 9005); DALI Dim Driver is remote; System Power (Total power consumption) 61W; Dimensions of the luminaire (lengthxWxH): 1875mm*675mm*60mm*80mm; luminaire’s weight is approximately 5400g; CCT 3000K with a System Luminous Flux of 7500lm; decent color rendering at an index of CRI80; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient EBright LED Chips; 5 years warranty; The diffuser is made of cut transparent polycarbonate (PC); degree of housing protection IP20; RG0 (EN62471); protection class Ⅱ;
Technical Drawing
Application: Indoor
Product Category: Linear System
Type: Oval
DIY: R660
Mounting Type: Trim Recessed
Housing Color: Black
RAL-Code: 9005
Diffuser: Microprismatic
Material: Extruded Aluminium Profile
Finish: Powder Coated
IP: 20
CCT: 3000K
CRI: 80
LED Output: 10450lm
System Output: 7500lm
Lifetime: 50000h@L80B10
LED Chip: EBright
Beam Angle: 95°
UGR: >19
LED Driver: DALI Dim
LED Power: 56W
System Power: 61W
LED Voltage: 33V
LED Current: 1700mA
Measurements: 1875mm*675mm*60mm
Cutout: 65mm
Height: 80mm
Net Weight: 5400g
Gross Weight: 7200g
Ceiling Thickness: 2-25mm
