Measurements: 1000mm*60mm
Measurements: 1000mm*60mm
Code:SV60CLS100P-8408022F-BN-CM
SPACE 60 EVO Customization Curve Pendant Linear Module
Pendant LED luminaire with direct beam made of high-quality extruded aluminium profile; black powder-coating finish – textured matt (RAL 9005); luminaire incl. black canopy with feeder cable as well as cable hangers and quick-release clamps for stepless regulation of mounting height; ON-OFF Driver is integrated into the luminaire housing; System Power (Total power consumption) 22W; Dimensions of the luminaire (including the end caps on both sides) (Curve lengthxWxH): 1000mm x 60mm x 80mm; luminaire’s weight is approximately 1600g; CCT 4000K with a System Luminous Flux of 2450lm Lumileds LED Chips; 5 years warranty; The diffuser is made of cut transparent polycarbonate (PC), with a microprismatic plate embedded inside to reduce luminance (UGR <19); degree of housing protection IP20; RG0 (EN62471); protection class I,Special attention: This version features a custom curve for pendant and supports customization based on customers' provided drawings. It comes with suspension accessories, a separate cut board cover, end caps, and connectors.

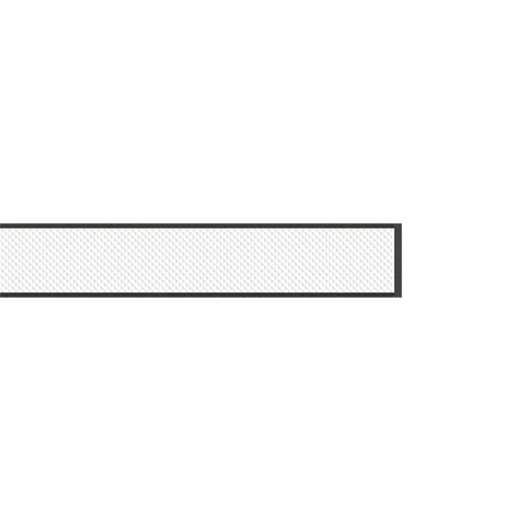

Technical Drawing

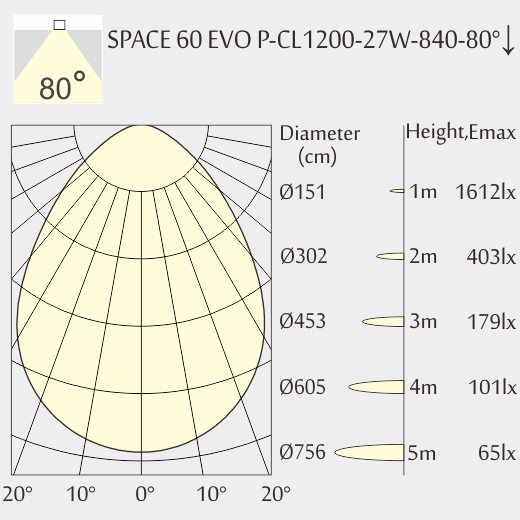

Light Distribution
Application: Indoor
Product Category: Linear System
Type: Customization Curve
DIY: Cut Board Cover- Customization Curve
Mounting Type: Pendant
Trim: Square
Housing Color: Black
RAL-Code: 9005
Diffuser: Microprismatic
Material: Extruded Aluminium Profile
Finish: Powder Coated
IP: 20
CCT: 4000K
CRI: 80
LED Output: 3400lm
System Output: 2450lm
Lifetime: 50000h@L80B10
LED Chip: Lumileds
Beam Angle: 80°
UGR: <19
LED Driver: ON-OFF
LED Power: 20W
System Power: 22W
LED Voltage: 28V
LED Current: 700mA
Measurements: 1000mm*60mm
Height: 80mm
Net Weight: 1600g
Gross Weight: 2000g
