Code:TEMA-8303010F-DN
TERARACE Ground Light
Ground Light round made of die-cast aluminum; external 24VDC LED Driver is required; Top Cover Stainless Steel; LED 9W; measurements Ø90mm; height of the luminaire is 115mm; CCT 3000K with a System Output of 850lm; decent color rendering at an index of CRI80; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient BRIDGELUX LED Chips; 5 years warranty; beam characteristic with 30° beam angle; degree of housing protection according to DIN EN 60529 (IP67); Impact resistance of the luminaire is in the class IK08;
Technical Drawing

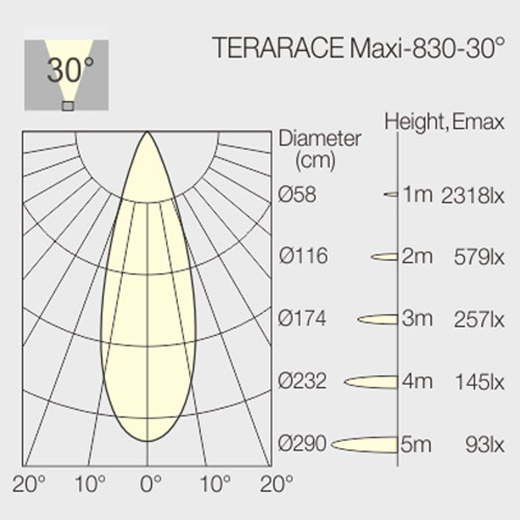

Light Distribution
Application: Outdoor
Product Category: Ground Light
Type: Fixed
Mounting Type: Ground Installation
Trim: Round
Housing Color: Stainless Steel
Material: Die-Cast Aluminium
IP: 67
CCT: 3000K
CRI: 80
System Output: 850lm
Lifetime: 50000h@L80B10
LED Chip: BRIDGELUX
Beam Angle: 30°
LED Driver: None
LED Power: 9W
System Power: 10W
LED Voltage: 24V
Measurements: Ø90mm
Height: 115mm
