Measurements: Ø28mm
Measurements: Ø28mm
Code:TEMI-8274002F-DN

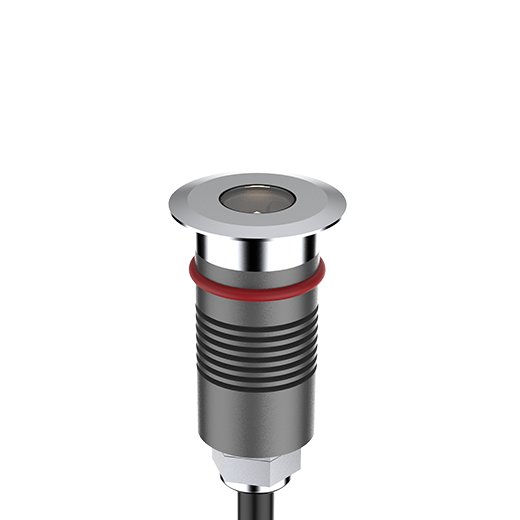

TERARACE Ground Light
Ground Light round made of die-cast aluminum; external 24VDC LED Driver is required; Top Cover Stainless Steel; LED 1W; measurements Ø28mm; height of the luminaire is 51mm; CCT 2700K with a System Output of 90lm; decent color rendering at an index of CRI80; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient OSRAM LED Chips; 5 years warranty; beam characteristic with 40° beam angle; degree of housing protection according to DIN EN 60529 (IP67); Impact resistance of the luminaire is in the class IK08;

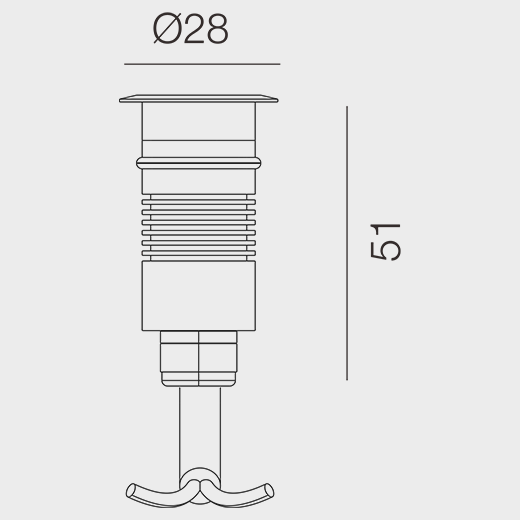

Technical Drawing

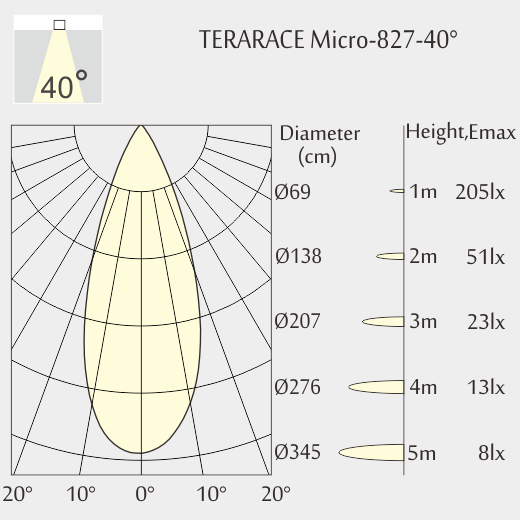

Light Distribution
Application: Outdoor
Product Category: Ground Light
Type: Fixed
Mounting Type: Ground Installation
Trim: Round
Housing Color: Stainless Steel
Material: Die-Cast Aluminium
IP: 67
CCT: 2700K
CRI: 80
System Output: 90lm
Lifetime: 50000h@L80B10
LED Chip: OSRAM
Beam Angle: 40°
LED Driver: None
LED Power: 1W
System Power: 1.5W
LED Voltage: 24V
Measurements: Ø28mm
Height: 51mm
