Measurements: Ø40mm
Measurements: Ø40mm
Code:TENA-8276002F-DN
TERARACE Ground Light
Ground Light round made of die-cast aluminum; external 24VDC LED Driver is required; Top Cover Stainless Steel; LED 1.6W; measurements Ø40mm; height of the luminaire is 67mm; CCT 2700K with a System Output of 110lm; decent color rendering at an index of CRI80; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient OSRAM LED Chips; 5 years warranty; beam characteristic with 60° beam angle; degree of housing protection according to DIN EN 60529 (IP67); Impact resistance of the luminaire is in the class IK08;
Technical Drawing

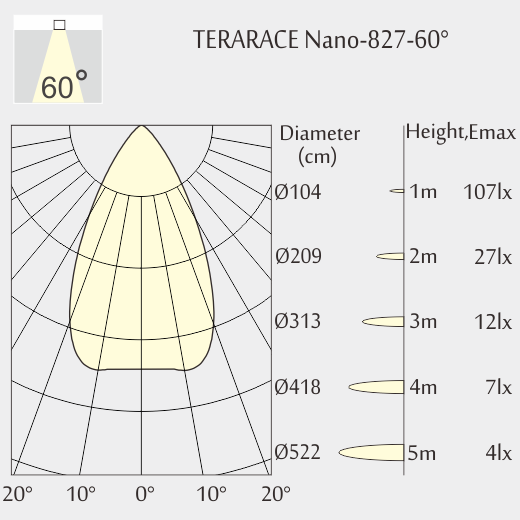

Light Distribution
Application: Outdoor
Product Category: Ground Light
Type: Fixed
Mounting Type: Ground Installation
Trim: Round
Housing Color: Stainless Steel
Material: Die-Cast Aluminium
IP: 67
CCT: 2700K
CRI: 80
System Output: 110lm
Lifetime: 50000h@L80B10
LED Chip: OSRAM
Beam Angle: 60°
LED Driver: None
LED Power: 1.6W
System Power: 2W
LED Voltage: 24V
Measurements: Ø40mm
Height: 67mm
