Housing Color: Black
Housing Color: Black
Code:TSM4-8277017N-BB

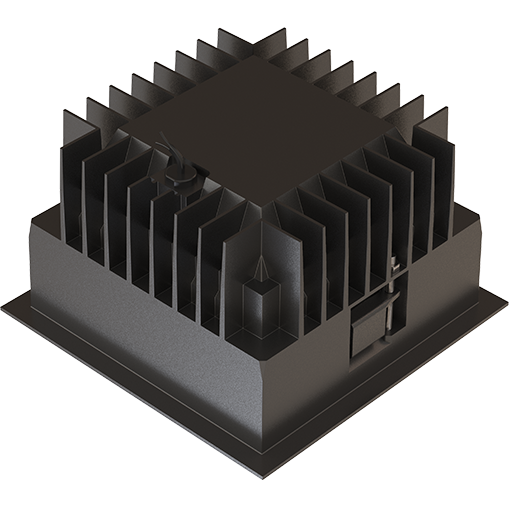

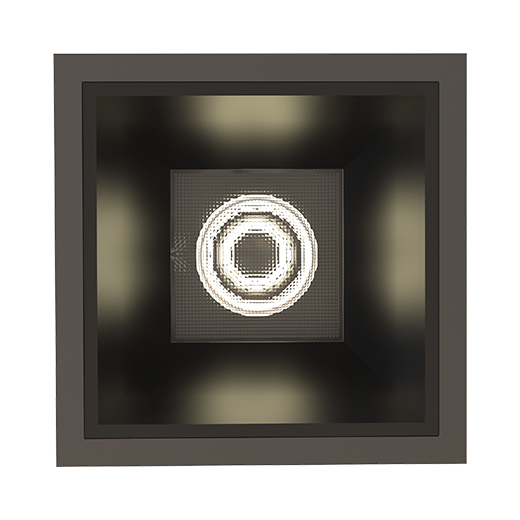

TAKEO Pro Fixed Downlight
Square recessed downlight made of die-cast aluminium with black powder-coating finish (RAL 9005) and black reflector; System Power 19W; measurements 167mm x 167mm x 100mm; narrow mounting trim with a cutout of 150mm x 150mm; ceiling thickness 1-25mm; luminaire’s weight is approximately 700g; CCT 2700K with an System luminous flux of 1900lm; decent color rendering at an index of CRI80; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic wit 70° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection IP54; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician
Technical Drawing

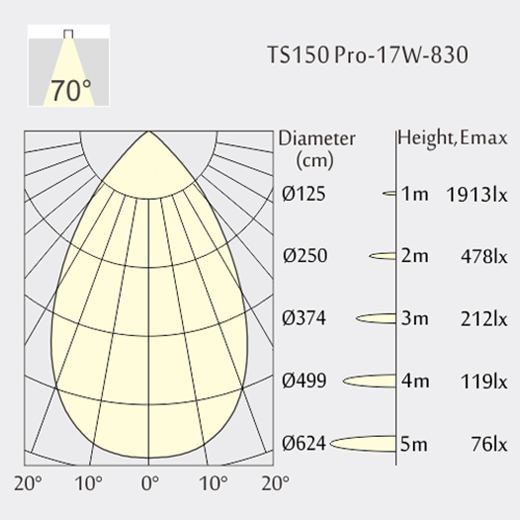

Light Distribution
Application: Indoor
Product Category: Downlight
Type: Fixed
Mounting Type: Recessed Mounted
Trim: Square
Housing Color: Black
RAL-Code: 9005
Reflector Color: Black
Material: Die-Cast Aluminium
Finish: Powder-Coated
IP: 54
CCT: 2700K
CRI: 80
LED Output: 3000lm
System Output: 1900lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 2
LED Chip: CITIZEN
Beam Angle: 70°
UGR: <19
LED Driver: None
LED Power: 17W
System Power: 19W
LED Voltage: 36V
LED Current: 500mA
Measurements: 167mm x 167mm
Cutout: 150mm x 150mm
Height: 100mm
Ceiling Height: 150mm
Net Weight: 700g
Gross Weight: 900g
Ceiling Thickness: 1-25mm
