Housing Color: Chrome
Housing Color: Chrome
Code:V2SR-9273628P-BC
VIBES Double Recessed Spotlight
Recessed Double Spotlight made of die-cast aluminium with chrome finish; Phase Dim Driver included in the mounting base; System Power 28W; measurements per spotlight Ø77mm x 38mm; measurements mounting base 185mm x 85mm x 31mm; ceiling cutout of 172mm x 75mm with a narrow mounting trim; rotation 360° and pivot max. 90°; CCT 2700K with a System Luminous Flux of 2300lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; medium beam characteristic with 36° beam angle; degree of housing protection IP20; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician
Technical Drawing

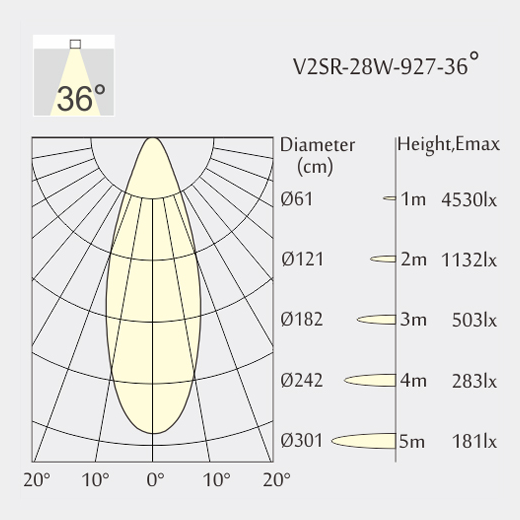

Light Distribution
Application: Indoor
Product Category: Spotlight
Mounting Type: Recessed Mounted
Trim: Square
Housing Color: Chrome
Material: Die-Cast Aluminium
Finish: Electroplating
IP: 20
CCT: 2700K
CRI: 90
LED Output: 2900lm
System Output: 2300lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: CITIZEN
Beam Angle: 36°
UGR: 28
Optional Accessories: Honeycomb
LED Driver: Phase Dim
LED Power: 25W
System Power: 28W
Input Voltage: 220–240V ~50/60Hz
LED Voltage: 2*36V
LED Current: 2*350mA
Measurements: 185mm x 85mm
Cutout: 172mm mm x 75mm
Height: 80mm
Ceiling Height: 70mm
Net Weight: 660g
Gross Weight: 720g
Ceiling Thickness: 1-20mm
Pivot: 90°
Rotation: 360°
