Search: Code / Series / Category / Version / Type / Mounting
Housing Color: White
Housing Color: White
Code:VF68-9274013N-WB
VISION Fixed Downlight
Round recessed ceiling downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and black reflector; System Power 15W; measurement Ø77mm; ceiling cutout of Ø68mm with a narrow mounting trim; luminaire’s height is 100mm; CCT 2700K with a System Luminous Flux of 1100lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 40° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP20

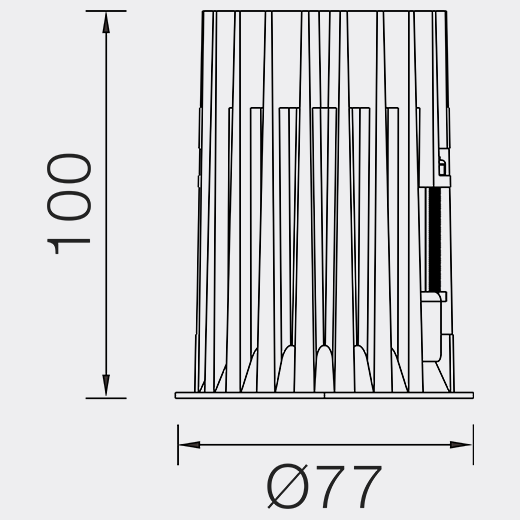

Technical Drawing

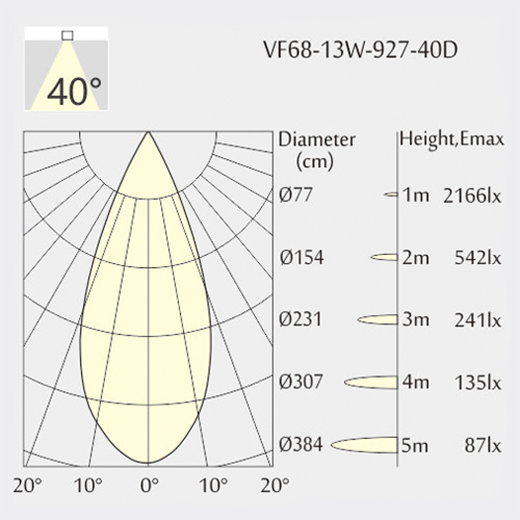

Light Distribution
Application: Indoor
Product Category: Downlight
Mounting Type: Recessed Mounted
Trim: Round
Housing Color: White
RAL-Code: 9016
Reflector Color: Black
Material: Die-Cast Aluminium
Finish: Powder-Coated
IP: 20
CCT: 2700K
CRI: 90
LED Output: 1400lm
System Output: 1100lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: CITIZEN
Beam Angle: 40°
UGR: <19
LED Driver: None
LED Power: 13W
System Power: 15W
LED Voltage: 36V
LED Current: 350mA
Measurements: Ø77mm
Cutout: Ø68mm
Height: 100mm
Ceiling Height: 150mm
Net Weight: 450g
Gross Weight: 500g
Ceiling Thickness: 1-32mm
