AFTER7 Maxi

Code:AFMA-8275010F-DN-H

AFTER7 Projector Light

Projector Light round made of die-cast aluminium; external 24VDC ON-OFF Driver; dark-grey powder-coating finish (RAL 7024); LED 9W; measurements Ø68mm x 124mm; height of the luminaire is 109mm; luminaire’s weight is approximately 1000g; CCT 2700K with an System Output of 750lm; decent color rendering at an index of CRI80; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 3 years warranty; beam characteristic with 50° beam angle; degree of housing protection according to DIN EN 60529 (IP67); Impact resistance of the luminaire is in the class IK10;

General

ApplicationOutdoor

Product CategoryGarden Lamp

TypeAdjustable

Mounting TypeProjector Light

TrimRound

Housing ColorDark Grey

RAL-Code7024

MaterialDie-Cast Aluminium

FinishPowder-Coated

IP67

LED

CCT2700K

CRI80

System Output750lm

Lifetime50000h@L80B10

LED ChipCITIZEN

Optics

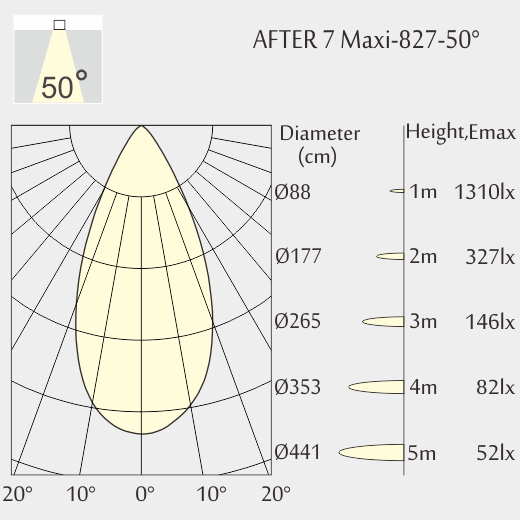

Beam Angle50°

Electric

LED DriverON-OFF

LED Power9W

System Power10W

LED Voltage24VDC

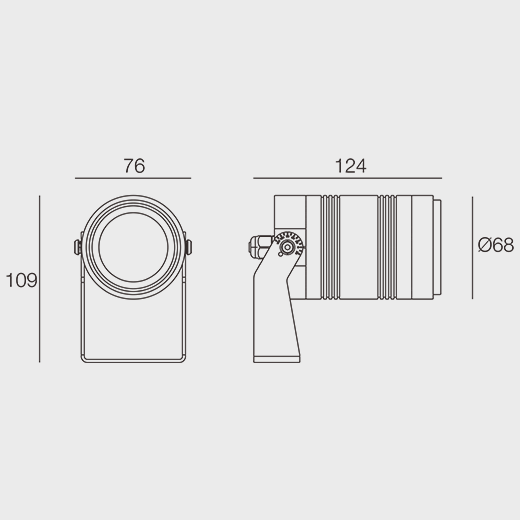

Dimensions

MeasurementsØ68mm

Height109mm

Net Weight1000g

Gros Weight1100g
