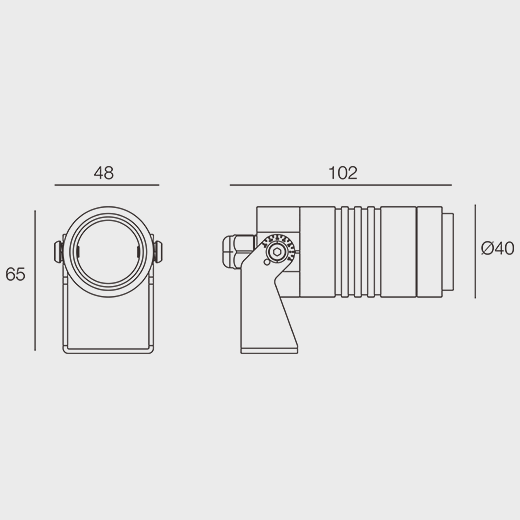

Technical Drawing

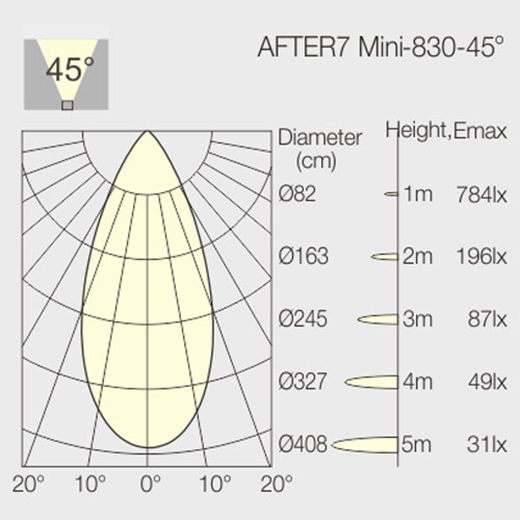

Light Distribution
Code:AFMI-8304506F-DN-H

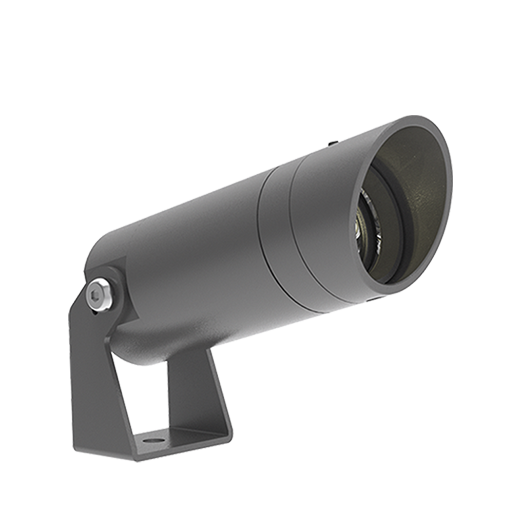

AFTER7 Projector Light
Projector Light round made of die-cast aluminium; external 24VDC ON-OFF Driver; dark-grey powder-coating finish (RAL 7024); LED 5W; measurements Ø40mm x 102mm; height of the luminaire is 65mm; luminaire’s weight is approximately 420g; CCT 3000K with an System Output of 470lm; decent color rendering at an index of CRI80; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 3 years warranty; beam characteristic with 45° beam angle; degree of housing protection according to DIN EN 60529 (IP67); Impact resistance of the luminaire is in the class IK10;
Technical Drawing
Light Distribution
Application: Outdoor
Product Category: Garden Lamp
Type: Adjustable
Mounting Type: Projector Light
Trim: Round
Housing Color: Dark Grey
RAL-Code: 7024
Material: Die-Cast Aluminium
Finish: Powder-Coated
IP: 67
CCT: 3000K
CRI: 80
System Output: 470lm
Lifetime: 50000h@L80B10
LED Chip: CITIZEN
Beam Angle: 45°
LED Driver: ON-OFF
LED Power: 5W
System Power: 5.5W
LED Voltage: 24VDC
Measurements: Ø40mm
Height: 65mm
Net Weight: 420g
Gros Weight: 480g
