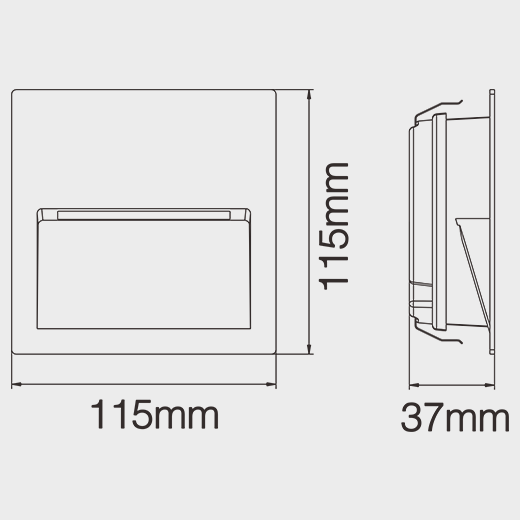

Technical Drawing

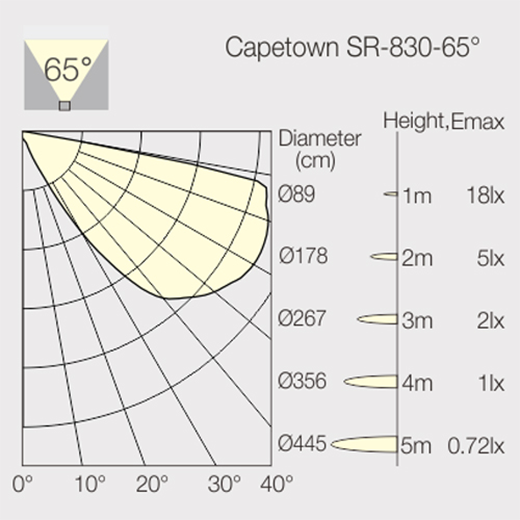

Light Distribution
Code:CTSR-8306505F-DN

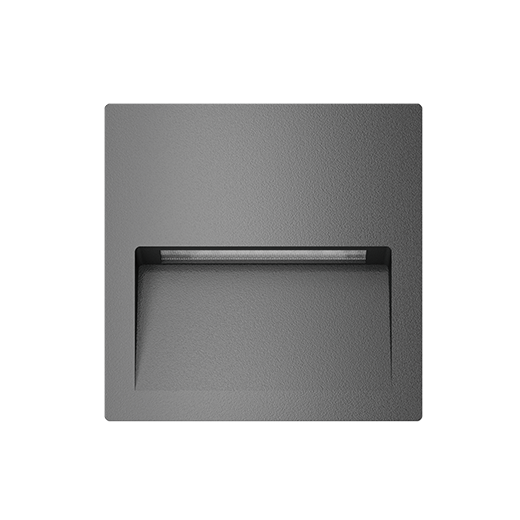

CAPETOWN Recessed Step Light
Recessed Step Light square made of die-cast aluminium with integrated ON-OFF Driver; dark-grey powder-coating finish (RAL 7024); LED 3W; measurement 115mm x 115mm; deepth of the luminaire is 37mm; cutout of 110mm x 110mm x 55mm; luminaire’s weight is approximately 340g; CCT 3000K with an System Output of 160lm; decent color rendering at an index of CRI80; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient EDISON LED Chips; 3 years warranty; beam characteristic with 65° beam angle; degree of housing protection according to DIN EN 60529 (IP65); Impact resistance of the luminaire is in the class IK07;
Technical Drawing
Light Distribution
Application: Outdoor
Product Category: Recessed
Type: Fixed
Mounting Type: Step Light
Trim: Square
Housing Color: Dark-Grey
RAL-Code: 7024
Material: Die-Cast Aluminium
Finish: Powder-Coated
IP: 65
CCT: 3000K
CRI: 80
System Output: 160lm
Lifetime: 50000h@L80B10
LED Chip: EDISON
Beam Angle: 65°
LED Driver: ON-OFF
LED Power: 3W
System Power: 4.5W
Input Voltage: 220–240V ~50/60Hz
LED Voltage: 220-240 VAC
Measurements: 115mm x 115mm
Cutout: 110mm x 110mm x 55mm
Height: 37mm
Net Weight: 340g
Gros Weight: 400g
