Technical Drawing

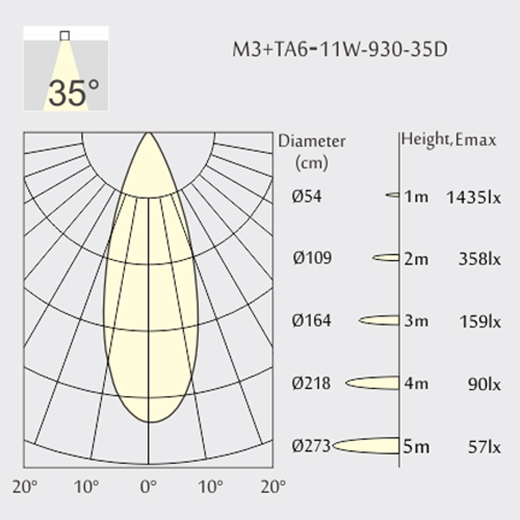

Light Distribution
Code:M3-8273511N-TA6-WWM
CLUB Downlight System
Round recessed downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and matt reflector; LED 11W; measurement Ø85mm; ceiling cutout of Ø75mm with a narrow mounting trim; luminaire’s weight is approximately 240g; CCT 2700K with an LED Output of 1100lm; decent color rendering at an index of CRI80; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 35° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection IP20 (LED Module IP54)
Technical Drawing
Light Distribution
Application: Indoor
Product Category: Downlight
Mounting Type: Recessed Mounted
Trim: Round
Housing Color: White
RAL-Code: 9016
Reflector Color: Matt
Material: Die-Cast Aluminium
Finish: Powder-Coated
IP: 20 - (LED Module IP 54)
CCT: 2700K
CRI: 80
LED Output: 1100lm
System Output: 540lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: CITIZEN
Beam Angle: 35°
UGR: <19
LED Driver: None
LED Power: 11W
System Power: 13W
LED Voltage: 31V
LED Current: 350mA
Measurements: Ø85mm
Cutout: Ø75mm
Height: 72mm
Ceiling Height: 122mm
Net Weight: 240g
Gros Weight: 370g
Ceiling Thickness: 1-20mm
Pivot: Max. 30°
Rotation: 355°
