Application: Indoor
Product Category: Downlight
Mounting Type: Recessed Mounted
Trim: Square
Housing Color: Black, White
Reflector Color: Black, Gold, Matt, white, White
IP: 20 - (LED Module IP 54)
CCT: Dim-to-Warm (1800K-3000K), 2700K, 3000K, 4000K
CRI: 80, 90, 95
LED Output: ≤1600lm
System Output: ≤1040lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: BRIDGELUX, CITIZEN
Beam Angle: 15°, 20°, 25°, 35°, 60°
UGR: <19
LED Driver: None, 0-10V Dim, DALI Dim, ON-OFF, Phase Dim
LED Power: 7.5W, 9W, 11W, 12W, 13W
System Power: 9W, 11W, 13W, 14W, 15W
LED Voltage: 31V, 33V, 36V
LED Current: 250mA, 350mA
Measurements: 85mm x 85mm
Cutout: 75mm x 75mm
Ceiling Height: 120mm, 145mm
Net Weight: 260g, 340g
Gros Weight: 380g, 460g

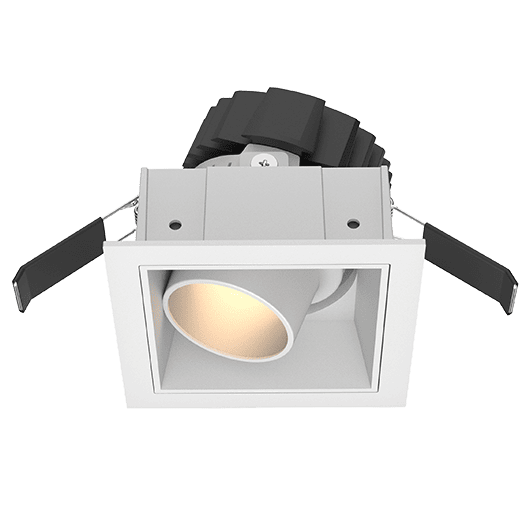

Housing Color: White
Housing Color: White

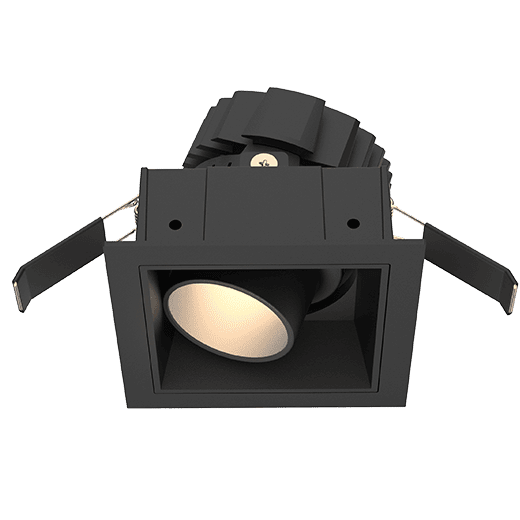

Housing Color: Black
Housing Color: Black
