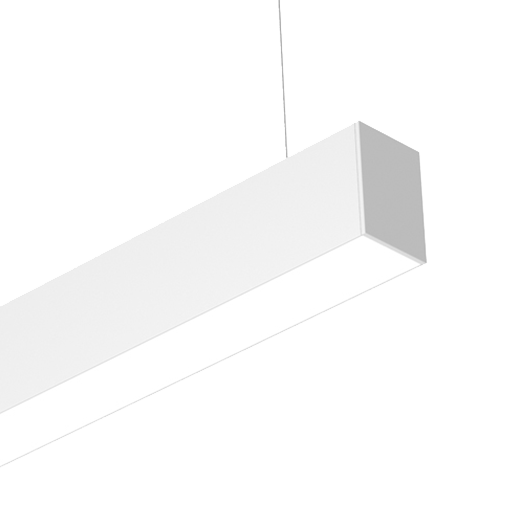

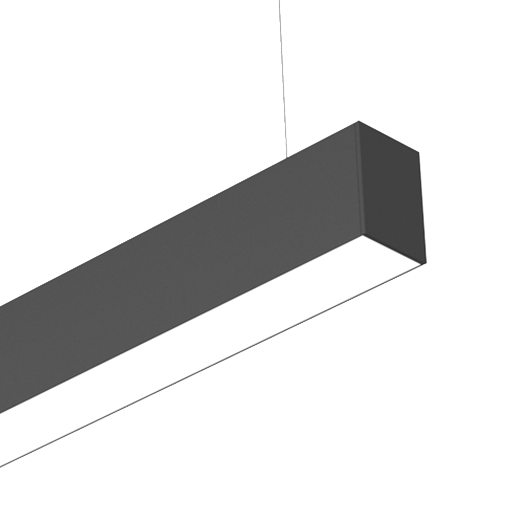

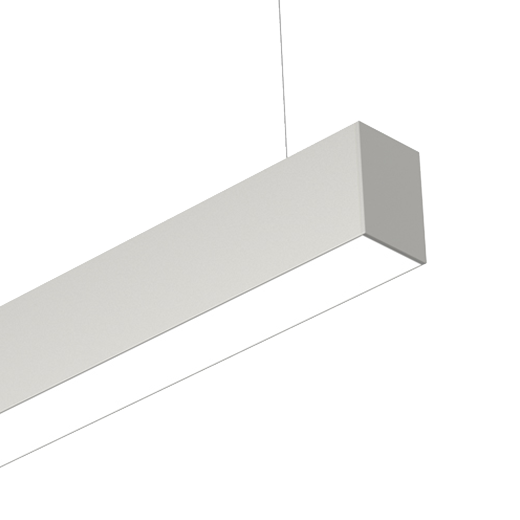

DASH 70 Pendant

NEKO Code Introduction

[Code_Prefix]-[Electrical-optical Info.]-[Color Infol-[Accessories]

Example

SSR1-9302813D-WS-H

- SENSE100, Round Trim, Adjustable Version,
- CRI90, CCT3000K, Beam 28D, 13W, DALI Control,
- White Trim, Specular 2^nd Reflector,
- with Honeycomb.

SLS3-940WW25A-WM

- SENSE150, Square Trim, Wall Washer,
- CRI90, CCT4000K, Wall Washer, 25W, 1-10V Control,
- White Trim, Matt 2^nd Refiector.

Product Details

Application: Indoor

Product Category: Linear Light

Mounting Type: Pendant

Trim: Square

Housing Color: Black, Silver, White

Diffuser: Microprismatic, Opal

IP: 20

CCT: 2700K, 3000K, 4000K, Tunable White

CRI: 80, 90

System Output: ≤26164lm

Lifetime: 50000h@L80B10

Standard Deviation: SDCM: 3

LED Chip: LUMINUS

Beam Angle: Direct, Direct/Indirect

UGR: <19

LED Driver: DALI Dim, ON-OFF

LED Power: High Power, Low Power

System Power: 19W, 22W, 26W, 29W, 30W, 32W, 34W, 35W, 36W, 38W, 41W, 42W, 43W, 45W, 46W, 48W, 49W, 52W, 54W, 55W, 57W, 60W, 61W, 65W, 68W, 70W, 71W, 76W, 77W, 81W, 82W, 83W, 92W, 93W, 98W, 103W, 105W, 109W, 113W, 120W, 135W, 143W, 145W, 153W, 183W, 187W

Measurements: 1214mm x 71mm, 1454mm x 71mm, 1694mm x 71mm, 1934mm x 71mm, 2174mm x 71mm, 2414mm x 71mm, 2894mm x 71mm, 3134mm x 71mm, 3856mm x 71mm

Net Weight: 4000g, 4200g, 4700g, 4800g, 5300g, 5500g, 5900g, 6100g, 6500g, 6700g, 7200g, 7500g, 8400g, 8800g, 9100g, 9400g, 11200g, 11700g
