DASH 70 Aufbau

NEKO Code Introduction

[Code_Prefix]-[Electrical-optical Info.]-[Color Infol-[Accessories]

Example

SSR1-9302813D-WS-H

- SENSE100, Round Trim, Adjustable Version,
- CRI90, CCT3000K, Beam 28D, 13W, DALI Control,
- White Trim, Specular 2^nd Reflector,
- with Honeycomb.

SLS3-940WW25A-WM

- SENSE150, Square Trim, Wall Washer,
- CRI90, CCT4000K, Wall Washer, 25W, 1-10V Control,
- White Trim, Matt 2^nd Refiector.

Produktdetails

Anwendung: Innenbeleuchtung

Produktkategorie: Profilsystem

Montageart: Deckenaufbau

Einbaurahmen: Eckig

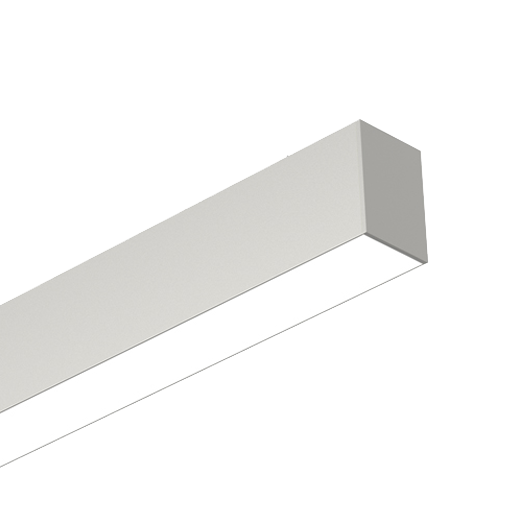

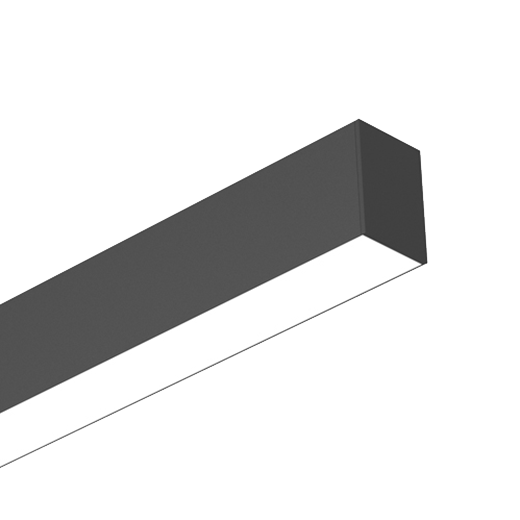

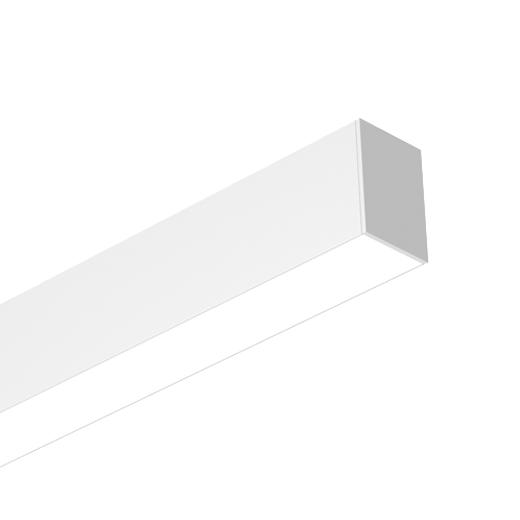

Farbe Gehäuse: Schwarz, Silber, Weiß

Diffusor: Mikroprisma, Opal

IP: 20

CCT: 2700K, 3000K, 4000K, Tunable White

CRI: 80, 90

System Output: ≤10938lm

Lebensdauer: 50000h@L80B10

Gütekriterium: SDCM: 3

LED Chip: LUMINUS

Abstrahlwinkel: direkt

UGR: <19

LED-Treiber: DALI Dim, ON-OFF

LED Power: High Power, Low Power

System Power: 12W, 15W, 16W, 17W, 19W, 22W, 25W, 26W, 29W, 30W, 32W, 34W, 36W, 38W, 41W, 42W, 43W, 45W, 46W, 49W, 52W, 54W, 57W, 60W, 70W, 71W, 76W, 93W, 98W

Größe: 614mm x 71mm, 974mm x 71mm, 1214mm x 71mm, 1454mm x 71mm, 1694mm x 71mm, 1934mm x 71mm, 2174mm x 71mm, 2414mm x 71mm, 2894mm x 71mm, 3134mm x 71mm, 3856mm x 71mm

Netto Gewicht: 2200g, 3100g, 3600g, 4200g, 4900g, 5400g, 6100g, 6800g, 8000g, 8600g, 10800g
