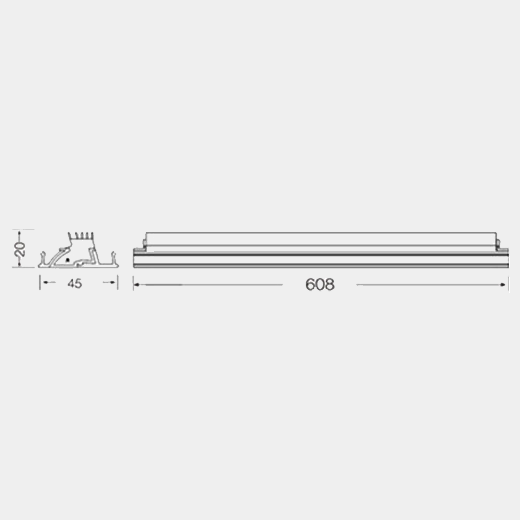

Technical Drawing
Light Distribution
Code:WW600-16W-840N
FUSION Linear System
FUSION Linear Wall Washer Module as profile insert; white surface (RAL 9016) and matte reflector; measurement 608mm x 45mm; Wall Washer’s weight is approximately 220g; CCT 4000K with an LED Output of 2300lm; decent color rendering at an index of CRI80; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient SAMSUNG LED Chips; 5 years warranty; lighting perfectly suitable for a wide illumination of wall surfaces to allow homogeneous light distribution; degree of housing protection according to DIN EN 60529 (IP20)
Technical Drawing
Light Distribution
Application: Indoor
Product Category: Wall Washer
Mounting Type: Profile Inset
Trim: Square
Reflector Color: Matt
Material: Aluminum
Finish: Colour Finish
IP: 20
CCT: 4000K
CRI: 80
LED Output: 2300lm
System Output: 1300lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: SAMSUNG
Beam Angle: Wall Washer
LED Driver: None
LED Power: 16W
System Power: 18W
LED Voltage: 46V
LED Current: 350mA
Measurements: 608mm x 45mm
Height: 20mm
Net Weight: 220g
Gross Weight: 240g
