FUSION Fixed Downlight

FUSION FF3 G2

Further Details Below

Product Details

ApplicationIndoor

Product CategoryDownlight

TypeFixed

Mounting TypeRecessed

TrimSquare

Housing ColorWhite, Black

Reflector ColorBlack

IP20

CCT2700K, 3000K, 4000K

CRI90

LED Output: ≤750lm

System Output: ≤600lm

Lifetime50000h@L80B10

Standard DeviationSDCM: 3

LED ChipBRIDGELUX

Beam Angle15°, 24°, 48°, 60°

UGR<19

LED DriverNone, On-Off, Phase Dim, 0-10V Dim, Dali Dim

LED Power7W

System Power9W

LED Voltage9V

LED Current700mA

Measurements98mm x 45mm

Cutout90mm x 37mm

Ceiling Height120mm

Net Weight180g

Gros Weight245g

Configure Luminaire

Housing Color
CCT
System Output
Beam Angle
LED Driver

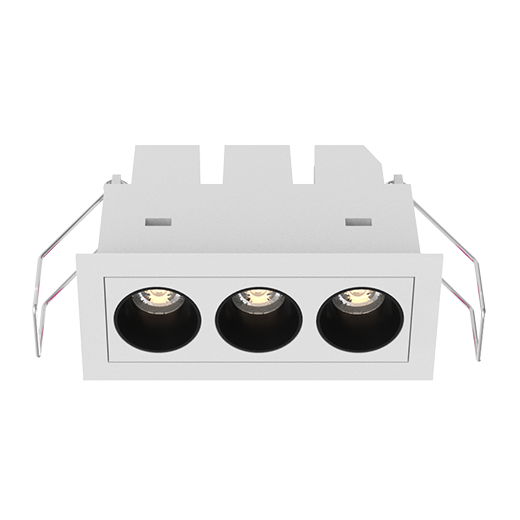

Housing Color: White

Prev123...6Next

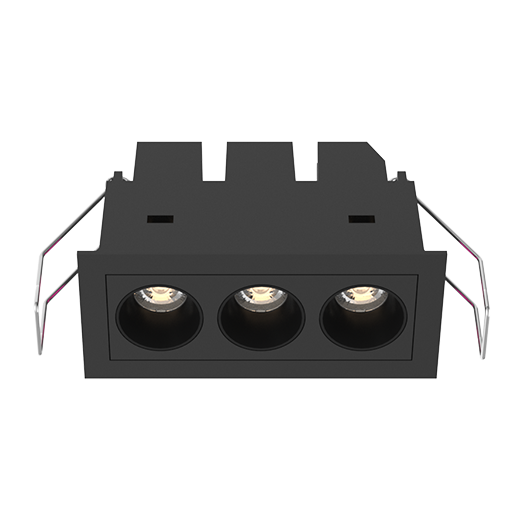

Housing Color: Black
