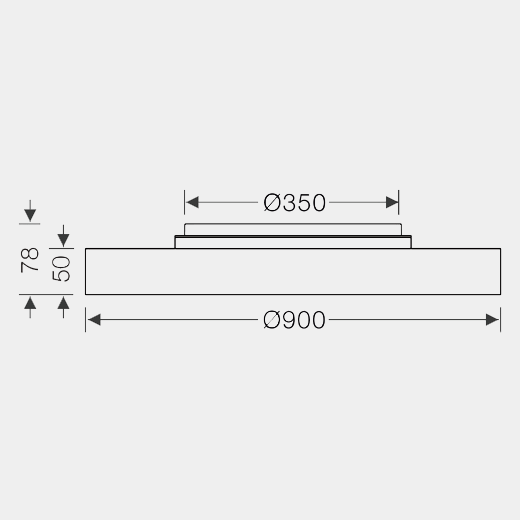

Technical Drawing

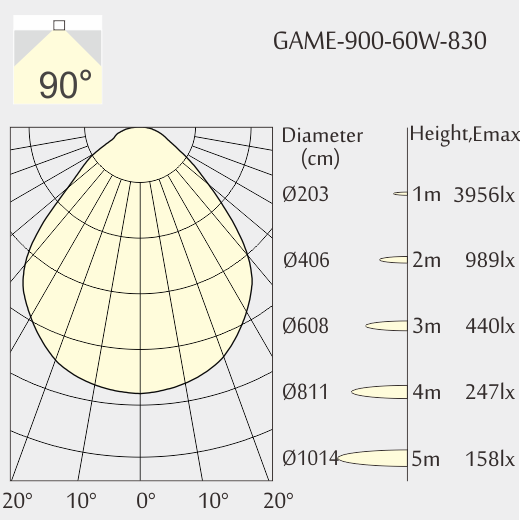

Light Distribution
Code:G9SM-8309060F-BN
GAME Ceiling Light
Round Ceiling Light/Wall Light with microprismatic cover for lower luminance made of die-cast-aluminium with black powder-coating finish (RAL 9005); ON-OFF Driver; LED 60W; measurement Ø900mm x 78mm; luminaire’s weight is approximately 10200g; CCT 3000K with a System luminous flux of 7900lm; decent color rendering at an index of CRI80; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient LED Chips; 5 years warranty; wide beam characteristic with 90° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection according to DIN EN 60529 (IP40)
Technical Drawing
Light Distribution
Application: Indoor
Product Category: Ceiling Light/Wall Light
Type: Direct
Mounting Type: Ceiling Mounted/Wall Mounted
Trim: Round
Housing Color: Black
RAL-Code: 9005
Reflector Color: None
Material: Die-Cast-Aluminium
Finish: Powder-Coated
IP: 40
CCT: 3000K
CRI: 80
LED Output: 10500lm
System Output: 7900lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
Beam Angle: 90°
UGR: <19
LED Driver: ON-OFF
LED Power: 60W
System Power: 62W
LED Voltage: 43V
LED Current: 1400mA
Measurements: Ø900mm
Height: 78mm
Net Weight: 10200g
Gross Weight: 13200g
